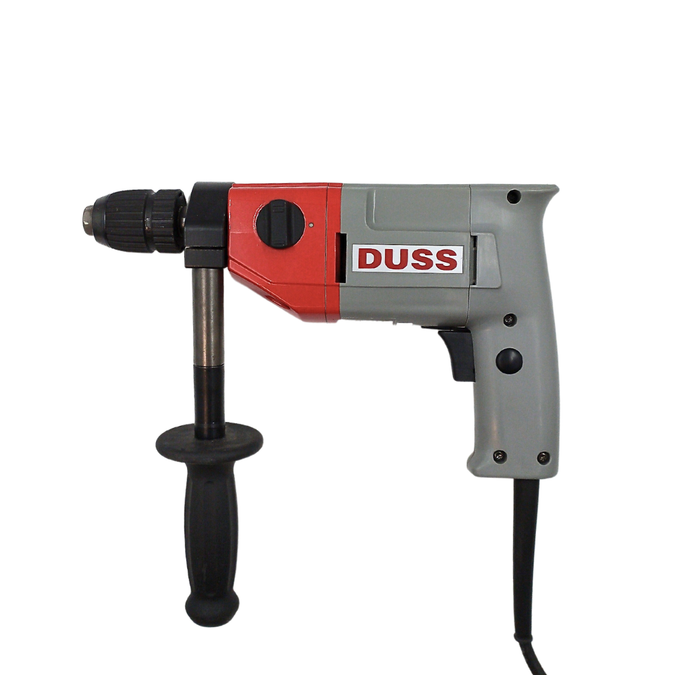

The DUSS Drill B 13 B 760w Rotary Drill with 2 Speed is perfect for installing screws, drilling small and large holes, working with hole saws and Forstner bits, removing screws, and mixing viscous substances. It offers very high torque in 1st gear, high speed in 2nd gear, and features a robust design with direct torque control. Ideal for applications requiring high torque such as drilling into stainless steel panels and threading with low torque. With a high-quality keyless chuck for easy tool changes, this drill is a versatile and powerful tool for a wide range of tasks.
APPLICATIONS
Small and large drill holes (1st/2nd gear)
Installing screws, also large screws
Mixing and stirring viscous substances
Working with hole saws and Forstner bits
Removing paint and rust with a brush
Applications, requiring high torque (Drilling into stainless steel panels, threading with low torque, etc.)
FEATURES
Very high torque in 1st gear (120 Nm)
High speed in 2nd gear
Direct torque control (DTC) protects the mechanical components of the drill driver from being overloaded
Clockwise/anticlockwise selector switch
Robust large dimensioned side handle, pivotable about 360°, with a gummed surface for a safe grip
Robust heavy-duty drill spindle mounting
3-level reduced 2-speed gear
High quality keyless chuck for a rapid and easy tool change
TECHNICAL SPECIFICATION
Rated power 760 W
Machine weight 2.8 kg
Spindle collar dia. 43 mm
Fixed torque (1st gear) 120 Nm
Chuck clamping range dia. 1.5 - 13 mm
Drilling dia. in softwood with Forstner bit 1st gear 51 - 80 mm
Drilling dia. in softwood with Forstner bit 2nd gear up to 50 mm
Rated speed 1st gear 0 - 170 rpm
Rated speed 2nd gear 0 - 1320 rpm
SCOPE OF DELIVERY
Assembled B 13 B DRILL DRIVER
Operation Manual
Warranty Information
12 Months as per Australia Consumer Law.
SPARE PARTS SERVICE
You should rely on the original when choosing spare and wear parts. This means more safety for you and no unnecessary downtime. DUSS original parts are specially designed to ensure that important characteristics such as reliability, comfort and performance are assured for a long time.
10 YEARS SPARE PARTS SERVICE
We guarantee the continuous availability to our customers of all spare parts for the current product range and assure them that we will continue to supply spare parts for at least ten years after the production of the corresponding machine has been discontinued. As a rule, our great vertical depth of production ensures a reliable supply of spare parts over many years.
READY FOR USE QUICKLY.
By a high level of stock, we can react quickly and at short notice on requests for spare parts.
