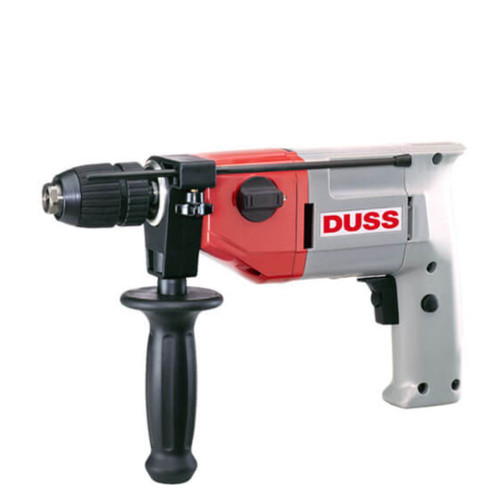

The DUSS Drill SB 13/2 RLE 650w Rotary Drill with 2 Gears is perfect for drilling in masonry, concrete, and anchor holes. It can also handle small and large drill holes, installing screws, mixing viscous substances, and more. With high torque in 1st gear, rapid changeover, and a high-quality keyless chuck, this drill is versatile and powerful. It also features a high-strength magnesium gear housing and a robust heavy-duty drill spindle mounting.
APPLICATIONS
Drilling in masonry and concrete
Drilling anchor holes
Small and large drill holes (1st/2nd gear)
Installing screws, also large screws
Working with hole saws
Sinking sockets with core bits
Mixing and stirring viscous substances
FEATURES
Rapid changeover, drilling/percussion drilling
High torque in 1st gear (45 Nm)
High speed in 2nd gear
Speed and impact force infinitely adjustable with pushbutton switch/adjusting dial
Clockwise/anticlockwise selector switch
High-strength magnesium gear housing
Robust heavy-duty drill spindle mounting
High quality keyless chuck for a rapid and easy tool change
TECHNICAL SPECIFICATION
Rated power 650 W
Machine weight 2.0 kg
Spindle collar dia. 43 mm
Chuck dia. 1,5 - 13 mm
Rated speed 1st gear 0 - 450 rpm
Rated speed 2nd gear 0 - 1550 rpm
Drilling dia. in steel 1st gear 16 mm
Drilling dia. in steel 2nd gear 8 mm
Screws up to dia. 12 mm
Max. impact rate 42000 impacts/min
SCOPE OF DELIVERY
Assembled SB 13/2 RLE Rotary Drill
Operation Manual
Warranty Information
12 Months as per Australia Consumer Law.
SPARE PARTS SERVICE
You should rely on the original when choosing spare and wear parts. This means more safety for you and no unnecessary downtime. DUSS original parts are specially designed to ensure that important characteristics such as reliability, comfort and performance are assured for a long time.
10 YEARS SPARE PARTS SERVICE
We guarantee the continuous availability to our customers of all spare parts for the current product range and assure them that we will continue to supply spare parts for at least ten years after the production of the corresponding machine has been discontinued. As a rule, our great vertical depth of production ensures a reliable supply of spare parts over many years.
READY FOR USE QUICKLY.
By a high level of stock, we can react quickly and at short notice on requests for spare parts.
