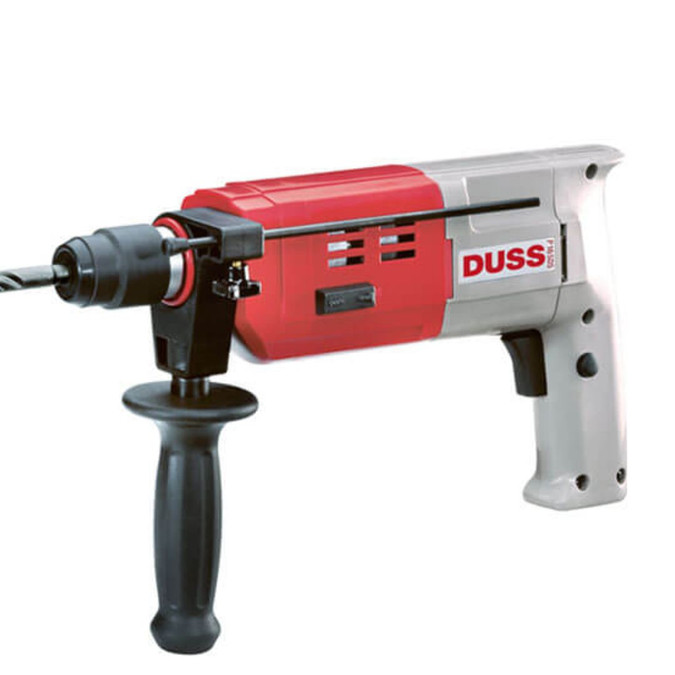

The DUSS P 16 SDS 600w Rotary Hammer Drill with SDS-plus is perfect for drilling anchor holes, overhead drilling, and installing electrical, plumbing, and heating systems. With user-friendly features like a safety clutch, adjustable speed and impact force, and a vibration damped percussion mechanism, this drill is ideal for interior outfitting, metal and wooden structures. The lightweight design and rapid tool change make it easy to use for non-fatiguing continuous operation. With a robust construction and technical data including a 600W rated power and drilling range up to dia. 24 mm, this hammer drill is a versatile and reliable tool for any project.
APPLICATIONS
Drilling anchor holes, also overhead
Drilling through-holes up to dia. 24 mm for heating pipes, electrical cables, etc.
Sinking sockets in masonry up to dia. 82 mm
Facade construction, metal and wooden structures
Light chiselling work
FEATURES
Safety clutch with gentle starting torque (protects against injuries, overloading and tool breakages)
Speed and impact force infinitely adjustable with pushbutton switch for gentle drilling with pinpoint accuracy
Clockwise/anticlockwise selector switch
Trigger lock, ensuring non-fatiguing continuous operation, such as drilling rows of holes
Vibration damping elements
Hammer action off-switch for drilling into wood, steel, tiles, etc.
Rapid tool change
Robust construction (outside: fibreglass reinforced polyamide; inside: magnesium housing)
TECHNICAL SPECIFICATION
Rated power 600 W
Machine weight 2.7 kg
Chuck SDS-plus
Drilling range with drill bit dia. 5 - 24 mm
Drilling range in steel up to dia. 13 mm
Drilling performance in hard C45/55 concrete (dia. 14 mm) 330 mm/min
Single impact energy 0 - 2.2 J
Rated speed 0 - 810 U/min
Impact rate, adjustable 0 - 4400 impacts/min
SCOPE OF DELIVERY
Assembled P 16 SDS ROTARY HAMMER
1x DUSS Storage Case
Operation Manual
Warranty Information
12 Months as per Australia Consumer Law.
SPARE PARTS SERVICE
You should rely on the original when choosing spare and wear parts. This means more safety for you and no unnecessary downtime. DUSS original parts are specially designed to ensure that important characteristics such as reliability, comfort and performance are assured for a long time.
10 YEARS SPARE PARTS SERVICE
We guarantee the continuous availability to our customers of all spare parts for the current product range and assure them that we will continue to supply spare parts for at least ten years after the production of the corresponding machine has been discontinued. As a rule, our great vertical depth of production ensures a reliable supply of spare parts over many years.
READY FOR USE QUICKLY.
By a high level of stock, we can react quickly and at short notice on requests for spare parts.
