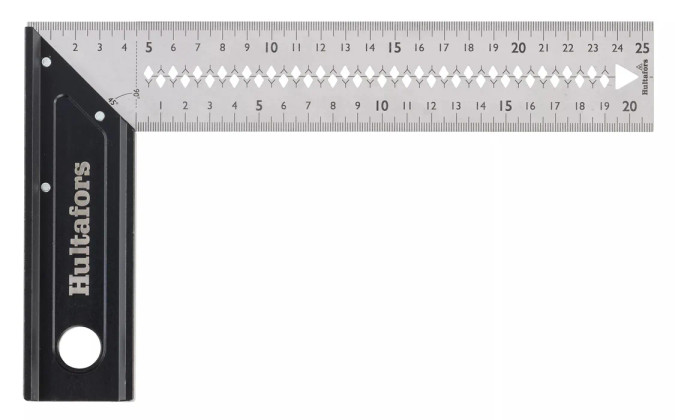

A Square built for both precision and durability. Excellent for construction, workshops and carpentry work. The blade is 45 mm wide to accommodate work with standard stud dimensions and a center line makes it easy to quickly mark out both sides of a stud. The blade also has scribing notches spaced 5 mm apart, these can be used to draw or cut a line parallel along an edge.
A unique assembly technology with strong custom riveting and a 1.5 mm thick high-strength stainless steel blade. That provides an extremely durable design that can withstand tough working environments and will last a long time. A precision cut blade and riveting with minimal tolerances provide extremely high precision; angle tolerance ±0.03° (±0.5 mm/m).
COMMON USES
Scribing notches
45mm blade with centerline
ADVANTAGES
Tolerance +/-0.03 degrees
Laser etched millimeter graduation with very high contrast and abrasion resistance.
The stock has a hole for attaching the tool safety lanyard or for wall hanging.
TECHNICAL DATA
Graduation : mm
Square : Fixed
Blade Length : 25cm
Blade Material Thickness : 1.5cm
Blade Material Width : 45mm
