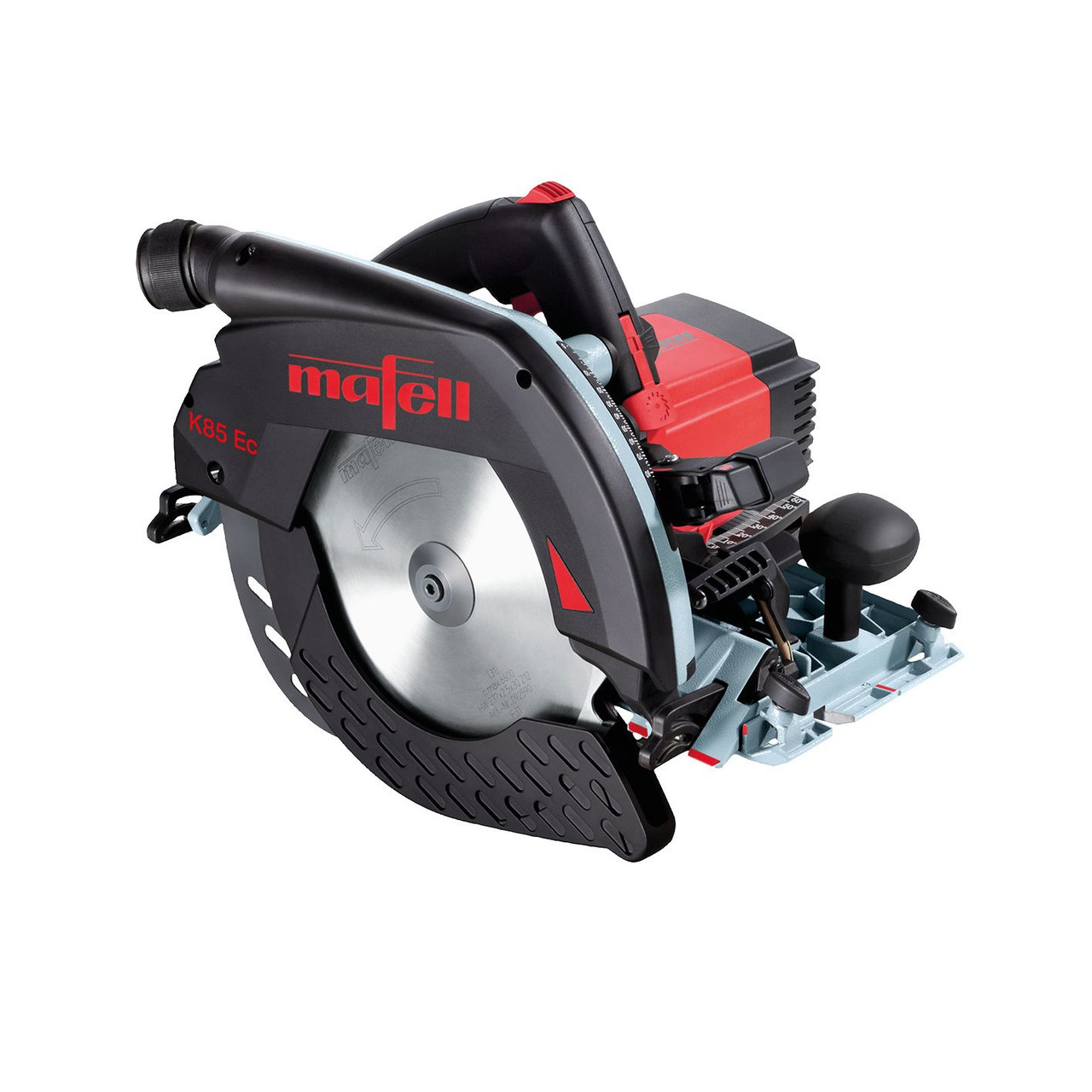

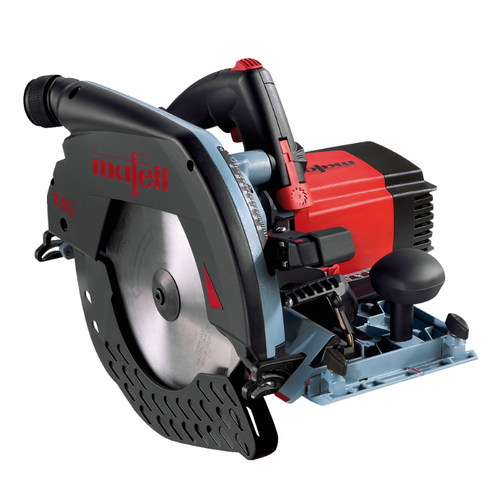

MAFELL K 85 Ec Corded 237mm Circular Saw in Systainer
Experience the power and precision of MAFELL's hand-held circular saws with the K 85 Ec in L-MAX. With CUprex high-performance motor and FLIPPKEIL for user comfort and safety, it's the ultimate tool for any cutting task.
Now concentrated power and high torque have a name: CUprex the high-performance motor with performance-optimized digital electronics and newly developed control technology. The speed can be continuously adjusted to suit different materials and applications.
APPLICATIONS
Cross-sections and longitudinal cuts under extreme conditions
Bevel cuts up to 60°
Notch cuts
Material use e.g.: solid wood, panel materials, insulation, doors, worktops, interior fittings and renovations
FEATURES
Even with a guide rail, an exceptional 82 mm is achieved.
With CUprex high-performance motor

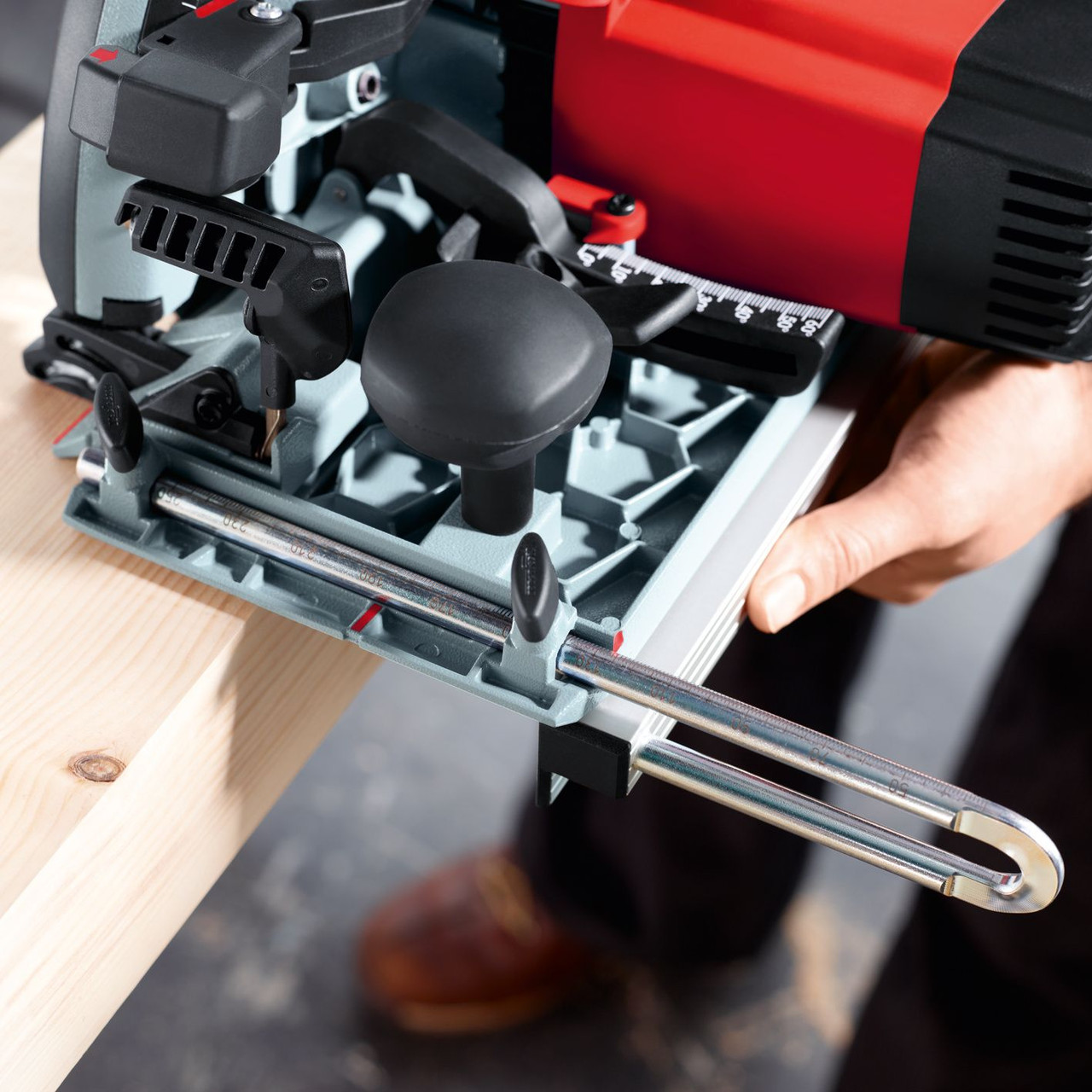

With the groove in the base plate, the guide devices available as special accessories can be used as a cross-cut rail saw.
High quality standard - means for you: lower machine costs and longer service life.
Optimum chip ejection especially when sawing insulation materials.
Sawing according to the scribe mark. The scribe mark automatically adjusts to the set inclination angle.
TECHNICAL SPECIFICATION
Rated power 2300 W
Machine weight 6.7 kg
Voltage 230 V
Blade Diameter 235 mm
Bore Size 30 mm
Rated idle speed 2250 - 4400 rpm
Cutting depth at 45° 0 - 61.5mm
Cutting depth at 90° 0-88mm
Swivel Range 0 - 60 °
SCOPE OF DELIVERY
- 1 TCT saw blade 237 x 1.8/2.5 x 30 mm (9 5 /16 in.), AT, 12 teeth, for rip cuts in wood; Ref. No. 092590
- 1 Parallel guide fence K 85-PA; Ref. 205323
- 1 Hose connector for chip extraction; Ref. No. 205290
- 1 Allen key 5 mm; Ref. No. 093034
- 1 Mains cable 4 m (13.1 ft); Ref. No. 087888
- With CUprex, the high-performance motor
- Electronic control
- in L-MAX case
