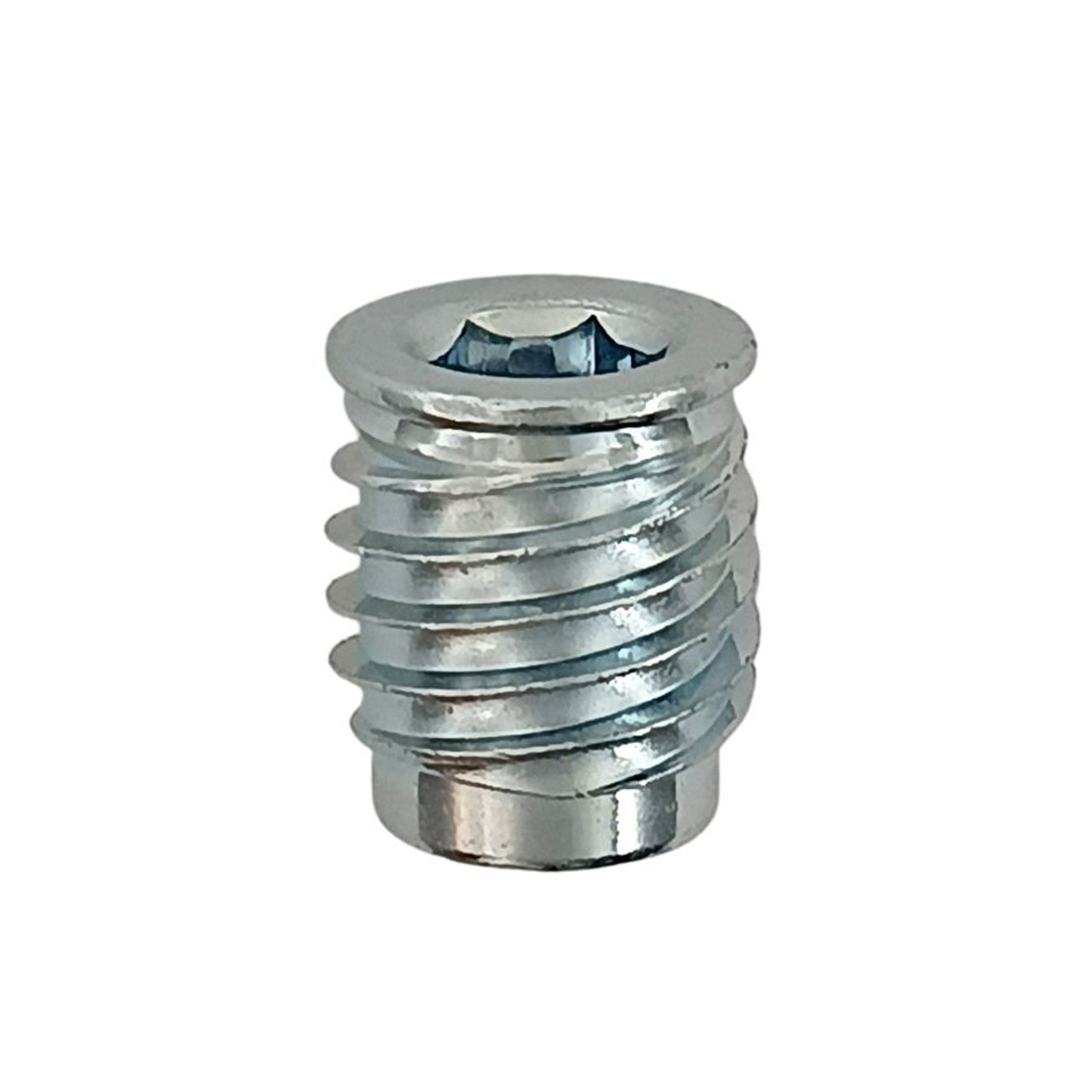

Introducing the SKD330 RAMPA Socket Type, ideal for wood, wood-based materials, thermoplastics, and foamed plastics. Galvanized steel with a hexagon socket for fast screwing. Patented 3-flute thread contour ensures maximum pull-out values and load capacity. Reliable and efficient.
The SKD330 features a closing collar which will seal the top of the pre-drilled hole ensuring a flush finisher and fixed surface for metal parts to be clamped to when the bolt is inserted.
BENEFITS
Features a sealing collar, hex drive, and tilt protection for optimal retaining function and ease of assembly.
Offers highest possible pull-out values in various woods, wood-based materials and thermoplastics.
Made in Germany, Rampa is known worldwide for producing high-quality inserts.
ADVANTAGES
Machined zinc plated steel ensures durability.
Patented 3-start external thread for tilt protection and quicker assembly.
Suitable for structure with load.
APPLICATION
Rampa inserts have an unthreaded lead for simplified screwing into wood and plastic applications, making them more convenient to use.
Suitable for a wide range of substrates including MDF, Chipboard, Plywood, Thermoplastics, Softwoods & Hardwoods.
SILVER ZINC
Indoor Application

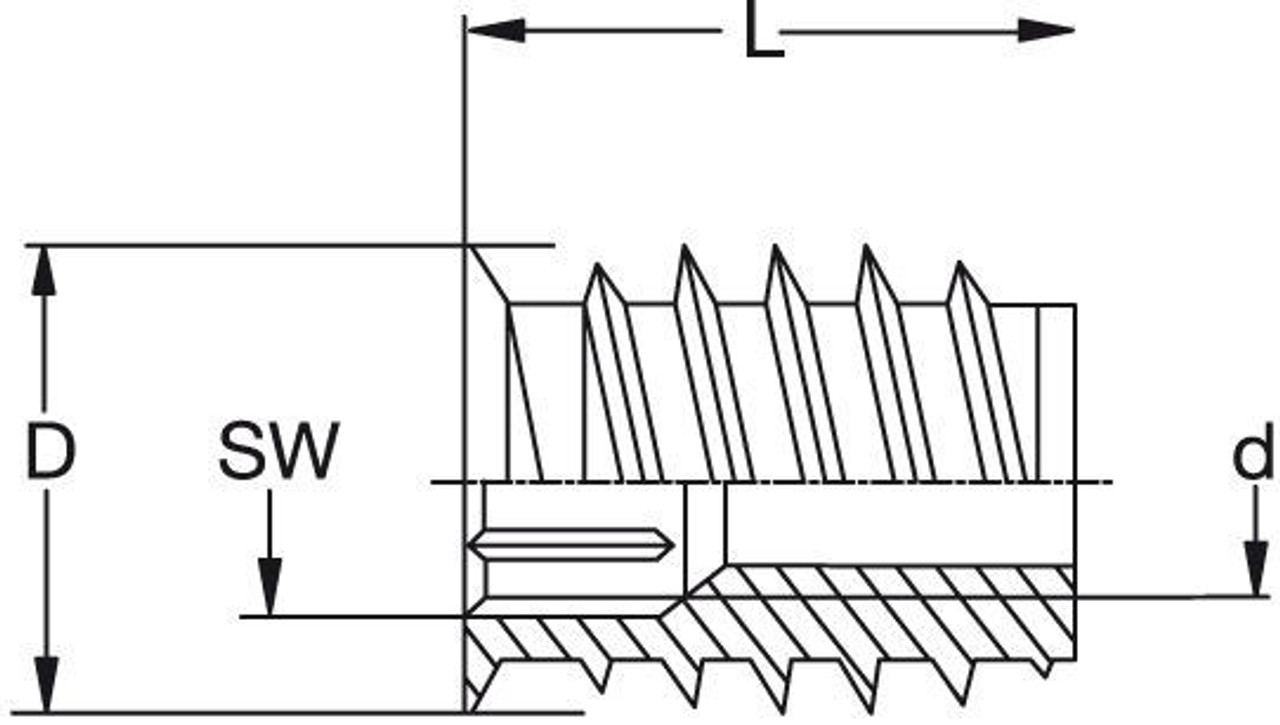

Technical Data
Internal Thread Diameter M10
Insert Diameter 18.5mm
Pre-Drill Diameter 16.5-17mm
Wrench Size 10mm
