RUWI Clamp | 20mm Hole Clamp Bolt with Clamp and Horizontal Lever Clamp

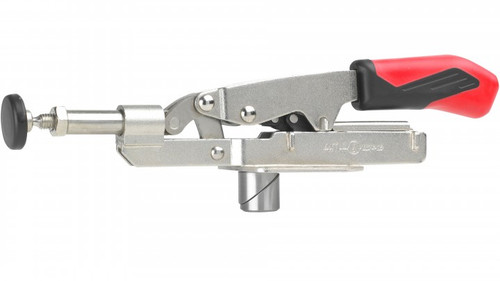

Horizontal clamp with clamping bolt

Quick clamp for horizontal clamping of workpieces

The horizontal clamp is firmly clamped to the table with the clamping bolt in hole grid tables with a bore of 20 mm from above using a hexagon socket key SW6. Thus it can be quickly and easily can be used on any suitable multifunctional table. The horizontal clamp provides the optimum pressure against a stop rail, stopper or fence.

Features:

• Stepless compensation function 13 mm for workpieces with different spans
• Maximum stroke compensation 35 mm
• Clamping bolt stainless steel Ø 20 mm with allen screw

Technical data:

• Length: 253 mm
• Max. Stroke compensation: 35 mm
• Automatic stroke compensation: 13 mm
• Clamping bolt Ø 20 mm stainless steel bright with rough surface

Delivery Includes:

• Horizontal clamp with clamping bolt Ø 20 mm
