Structural PRODUCT RANGE

PITZL Tools | HVP Connector Milling Assembly Template for 88004 - 88322

Convenient work The Pitzl Milling and Assembly Templates are designed for all connector sizes of the HVP series. These flexible and easily adjustable templates allow for quick adjustments of connector width, streamlining the preparation process. Once the...

PITZL Post Base | RIGHT/LEFT Adjustable Post Base M24 Thread with 100mm Lateral Plate

Supporting a wooden column using post supports A system for all applications! Threads of 20 to 30 mm and the most varied plate sizes with 6 to 15 mm material thickness - we have the perfect solution for any application. Lift-off and lateral impacts can...

KNAPP Connections | WALCO V80 Wall Connector in Galvanised Steel

WALCO® V | The connector for prefab wall up to 16 kN* The WALCO® V wall connector set consists of a “dovetail” shaped hot-dip galvanized bracket and a specially shaped counterpart screw. An optional lock can be installed to latch...

KNAPP Connections | WALCO V60 Wall Connector in Galvanised Steel

WALCO® V | The connector for prefab wall up to 16 kN* The WALCO® V wall connector set consists of a “dovetail” shaped hot-dip galvanized bracket and a specially shaped counterpart screw. An optional lock can be installed to latch...

PITZL Post Base | RIGID Fixed 27mm Tube Post Base for 100mm in Hot Dip Galvanised

PURPOSE Timber Structure Engineering Post Base Support SUITABILITY Solid Timber SUMMARY Item No. 11000.0000 Upper Plate W x H (mm) 80 x 80 x 5 Bottom Plate W x D x H (mm) 80 x 80 x 5 Installation height mm 100mm Tube Ø 27mm  Hole Ø...

PITZL Post Base | PTP INCLINE Adjustable M24 Thread Post Base for 175-235mm

Supporting a wooden column using post supports Support of a wooden support with PITZL post support 10529.1090 in accordance with ETA-10/0413. The connection to the wooden support of the upper plate (Ø 96 x 8 mm) is made using 4 fully threaded...

KNAPP Connections | K064 RICON Locking Clip for Stainless Steel Single Connections

Details Locking clip made of stainless spring steel. Application Locks the connection against slide-in direction. Material Stainless Steel

KNAPP Connections | K274 RICON S 60/30 Stainless Steel Single Connections

RICON® | Universal wooden connector made of stainless steel RICON® 60/30 EA stainless steel (F2,Rk 5,2 kN*)1 set contains: 2 pcs. RICON® 80/30 stainless steel, 2 pcs. each RICON® CS-screws stainless steel 5x50 and 5x80 mm, 2 pcs. each...

KNAPP Connections | MEGANT 310/60/40 Connections for Mass Timber

For an invisible joint or when specific fire protection requirements are needed, MEGANT® can be processed with concealed three-sided installation. Due to the gap-sealed connection, no additional covers or fire protection tapes are necessary...

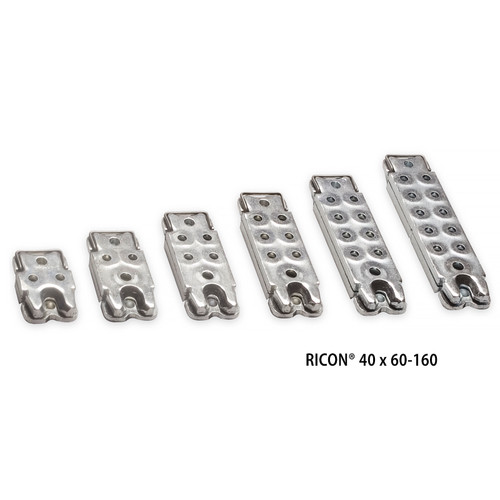

KNAPP Connections | K361 RICON 80/40 Single Connections for Prefabrication Construction

RICON® | The connector for main and secondary beam up to 26 kN* Consisting of: 1 pair RICON 80/40, 2pcs. each RICON CS screws 5x50 and 5x80 mm, 2 pcs. each RICON CS screws 8x50 mm and 8x80 mm, 1 pc. RICON locking clip System advantages: Applications...

PITZL Post Base | PTP Adjustable Post Base with M24 Thread

Supporting a wooden column using post supports Support of a wooden support with PITZL post support 10529.1090 in accordance with ETA-10/0413. The connection to the wooden support of the upper plate (Ø 96 x 8 mm) is made using 4 fully threaded...

PITZL Connections | HEAVY DUTY Concealed Connections 120mm x 450mm x 20mm

Creating a main and secondary beam connection from wood to wood Main-secondary beam connector according to ETA-15/0187 made of an aluminum alloy including 36 pcs. Heco Topix Ø 8,0 x 160 / 180 / 200 mm, yellow-galvanized / zinc-nickel, suitable for...

PITZL Connections | DOUBLE Concealed Connections 160mm x 220mm x 12mm

Creating a main and secondary beam connection from wood to wood Main-secondary beam connector according to ETA-15/0187 made of an aluminum alloy including 84 pcs. Heco Topix Ø 5,0 x 60 / 80 / 100 mm, yellow-galvanized / zinc-nickel, suitable for...

PITZL Connections | DOUBLE Concealed Connections 160mm x 180mm x 12mm

Creating a main and secondary beam connection from wood to wood Main-secondary beam connector according to ETA-15/0187 made of an aluminum alloy including 64 pcs. Heco Topix Ø 5,0 x 60 / 80 / 100 mm, yellow-galvanized / zinc-nickel, suitable for...

PITZL Connections | HEAVY DUTY Concealed Connections 120mm x 200mm x 12mm

Creating a main and secondary beam connection from wood to wood Main-secondary beam connector according to ETA-15/0187 made of an aluminum alloy including 16 pcs. Heco Topix Ø 8,0 x 160 / 180 / 200 mm, yellow-galvanized / zinc-nickel, suitable for...
