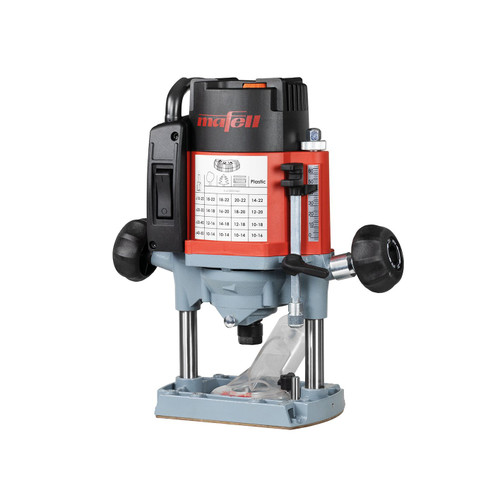

MAFELL LO 65 Ec Hand Router in T-MAX Systainer
Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
The coordinated, optimised components enable the machine to be used for filigree work requiring absolute precision. The fine adjustment of the cutting depth can be fixed exactly, making refinishing an exception.
The groove in the base plate permits flush trimming of edge bands without any additional attachments.
To replace the cutter quickly and easily, simply turn the LO 65 Ec upside down. A standard spindle locking mechanism is fitted as a matter of course.
APPLICATIONS
Profile and grooving work
Milling fittings
Dovetail joints (Lignatool, Arunda)
Milling in staircase construction
Material use e.g.: solid wood, panel materials
FEATURES
Concentrated power and high torque now have a name: CUprex, the high-performance motor with performance-optimized digital electronics and newly developed control technology. The speed can be continuously adjusted to suit different materials and applications.
The coordinated and optimized components make it possible to use the machine for delicate work that requires absolute precision, as well as for template applications in solid wood.
The fine adjustment of the milling depth can be precisely fixed, making rework an exception.
To change the cutter, simply turn the LO 65 Ec upside down and change your cutter quickly and easily. A spindle lock is of course standard.
TECHNICAL SPECIFICATION
Machine weight 6.9kg
Rated power 2600 W
Voltage 230 V
Milling depth 0-65mm
Rated idle speed 10000 - 22000 rpm
Scope of Delivery in Hand Router LO 65EC MidiMax in T-Max
- 1 Template guide Ø 30 mm (1 3/16 in.); Ref. No. 038971
- 1 Adapter with internal shaft M 12 x 1; Ref. No. 201575
- 1 Single-end spanner 22 mm; Ref. No. 093012
- 1 Chip collector; Ref. No. 204325
- 1 Mains cable 4 m (13.1 ft); Ref. No. 087885
- Transport and storage box T-MAX
Scope of Delivery in Hand Router LO 65EC MaxiMax in T-Max
- 1 Parallel guide fence with fine adjustment; Ref. No. 204310
- 1 Template guide Ø 30 mm (1 3/16 in.); Ref. No. 038971
- 1 Collet Ø 8 mm; Ref. No. 093256
- 1 Adapter with internal shaft M 12 x 1; Ref. No. 201575
- 1 Chip collector; Ref. No. 204325
- 1 Revolving depth control turret
- 1 Single-end spanner 22 mm; Ref. No. 093012
- 1 Mains cable 4 m (13.1 ft); Ref. No. 087885
- Transport and storage box T-MAX
