DUSS is a modern, independent family-owned firm with its roots in the Black Forest at the heart of the Baden-Württemberg region in southwest Germany. It is here that every single DUSS machine is conceived, designed and produced.
TOP QUALITY
MADE IN GERMANY
SINCE 1920
APPICATIONS & FEATURES
APPLICATIONS
DRY DRILLING WITH/WITHOUT SOFT IMPACT
WET DRILLING*
- Dry diamond core drilling with dust extraction in concrete and reinforced concrete with soft impact, in highly compacted sand-lime brick and masonry
- Dry drillings in water sensitive areas like server rooms, electrical installations, archives or production sites
- Retrofitting of plumbing and heating systems, electrical installations in inhabited rooms
- Drilling for house connections from the inside and outside, also in insulated walls

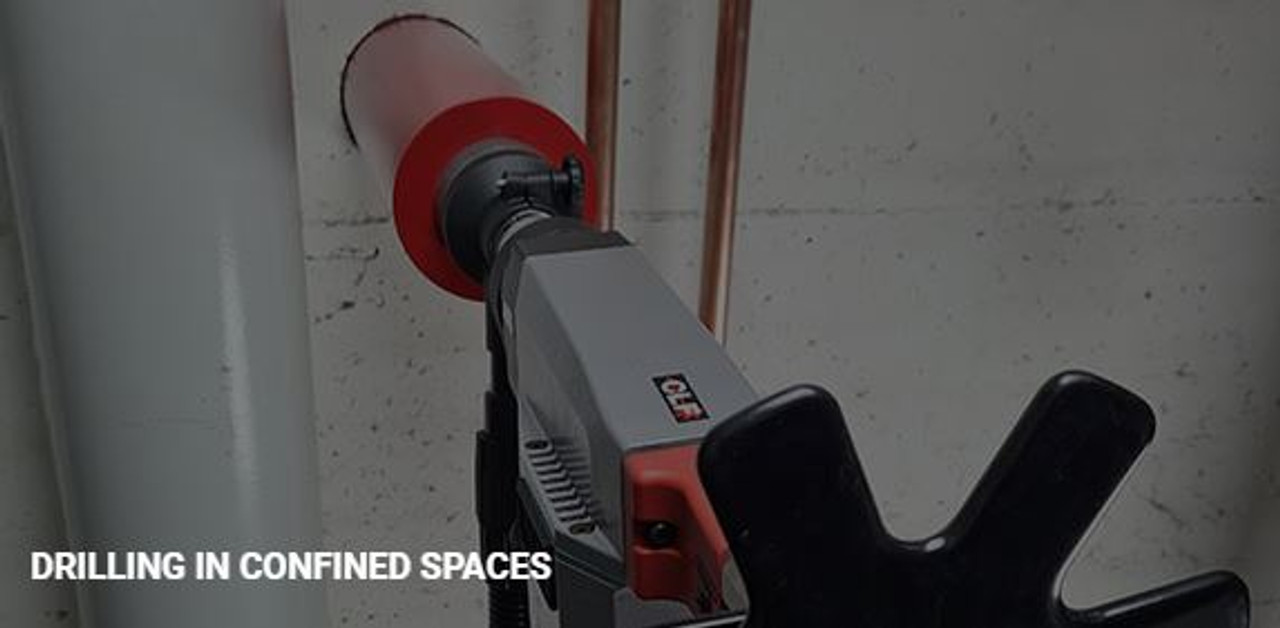

- Drilling in confined, hard-to-reach places, e.g. with existing pipe installations, structural conditions such as ceiling projection or window lintel
- Drilling where the surroundings of the drilling site must not be damaged, e.g. by anchor holes
- Hand-held drillings or drillings with drill stand are also possible
- Building constructions, restorations, sanitary, heating and air-conditioning technology and drilling services
* only in conjunction with optional WDFH rotary water union
FEATURES

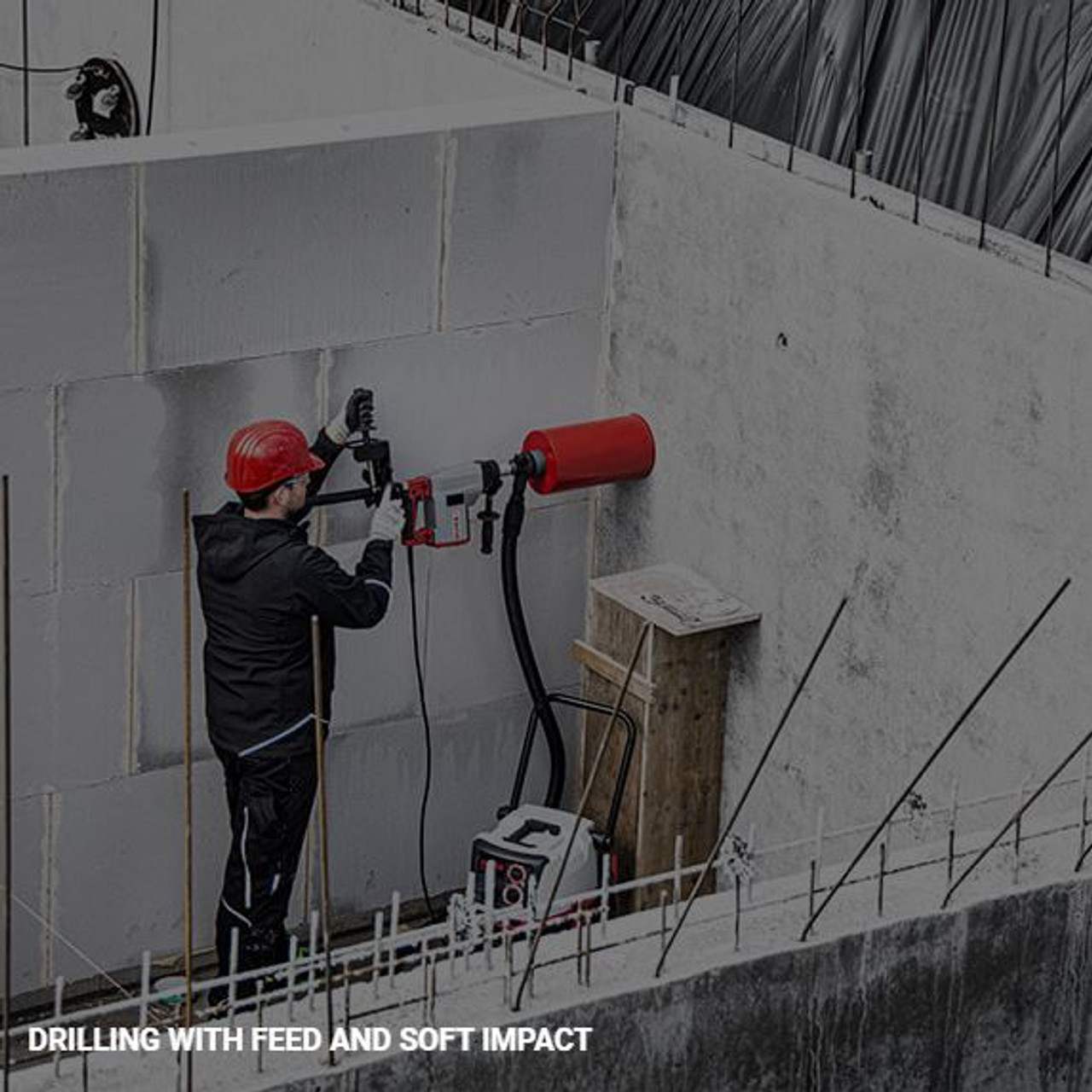

- Mountable feed system CLF for uncomplicated, effortless drilling, combining the advantages of hand-held and stand-guided drilling
- Continuous feed rod in the machine replaces the guiding function of a drill stand
- Manual feed enables effortless drilling and absorption of the torque and the machine weight during drilling

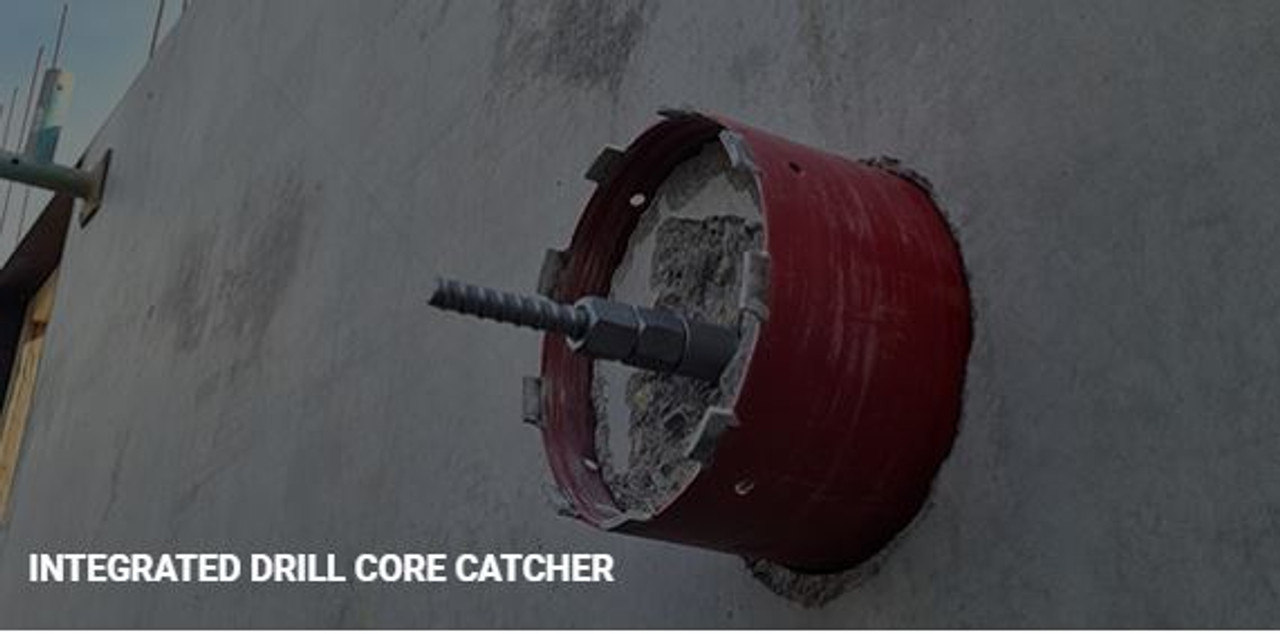

- Integrated drill core catcher, drill core remains reliably on the feed rod and can be easily removed
- Switchable soft impact (XIP) for accelerated drilling progress
- Lower set up and time effort as when drilling wet Nassbohrungen in concrete or reinforced concrete
- Clean working environment where time-consuming cleaning is no longer necessary
- Optional wet drilling with WDFH rotary water union
- Compact, space-saving and lightweight drilling unit
- Comfortable working even in narrow places, easy assembly and use, without need for larger tools or a second person
- Handle arrangements and machine positions are variable for ergonomic work
- LED display for performance monitoring and service planning
- Trigger lock for continuous operation can be easily operated even with working gloves
- Ultra-efficient dust extraction
- Efficient removal of drill dust guarantees a reliable drilling performance
- Safety clutch with anti-lockup system
- Screw-in auxiliary handle for non-fatiguing, back-saving posture when drilling downwards, hand-held
- Electronic overload protection and soft start
TECHNICAL DATA

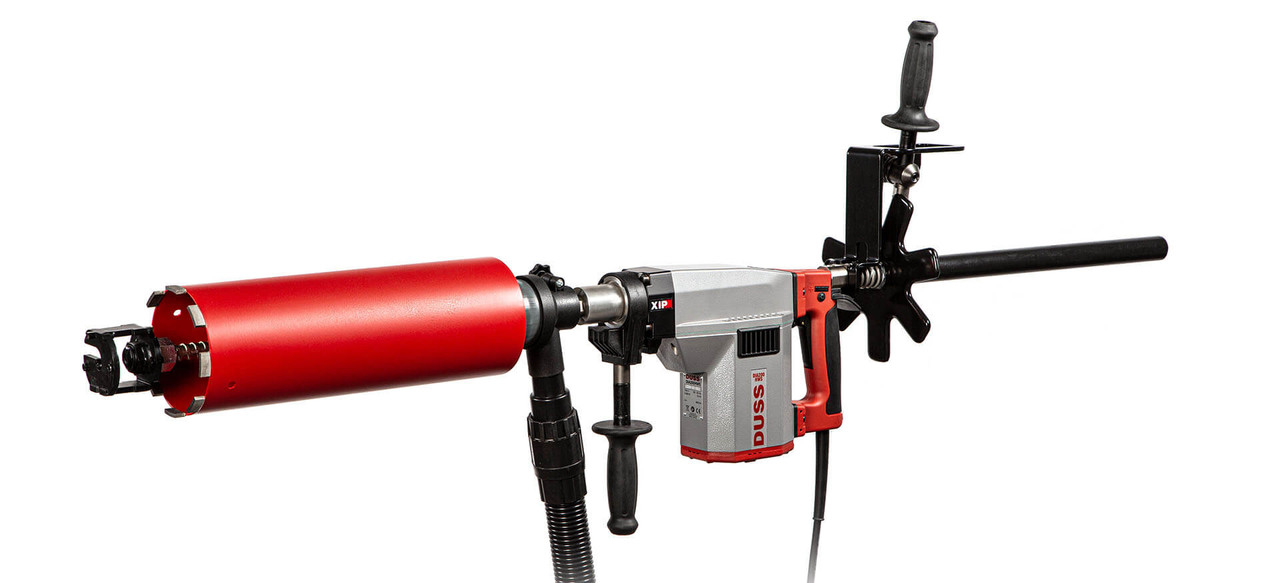

DIA 200 HWS diamond core drill | |
---|---|
Rated power | 2000 W |
Machine weight | 7.3kg / 11.8 kg with feed system |
Chuck | 1 1/4" UNC |
Rated speed | 680 rpm |
Drilling range with diamond core bit, hand-held, dry | dia. 82 - 132 mm in concrete |
Drilling range with diamond core bit, with BS drill stand, dry | with feed system: dia. 82 - 202 mm |
Drilling range with diamond core bit, hand-held, dry, with soft impact | dia. 82 - 202 mm |
Drilling range with diamond core bit, with BS drill stand, dry, with soft impact | with feed system: dia. Ø 82 - 202 mm |
