DUSS DIA 203W 2000w Core Drill for Dry and Wet Drilling

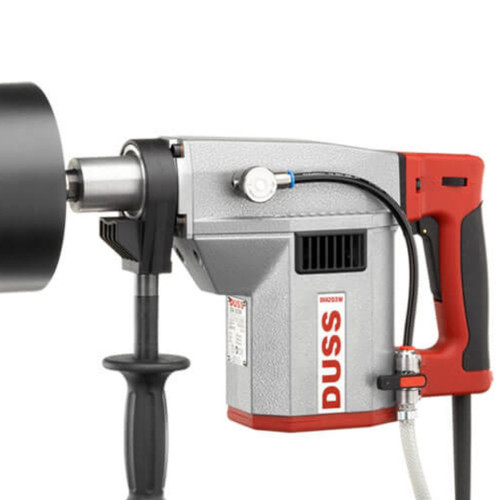

The DUSS Core Drill DIA 203W is a powerful 2000w core drill suitable for both dry and wet drilling. It is ideal for drilling in reinforced concrete, granite, marble, sandstone, natural stone, masonry, and more. With features such as efficient drilling performance, quick release system for rapid core bit change, and ultra-efficient dust extraction during dry drilling, this core drill offers comfortable and precise drilling for a variety of applications including plumbing and heating installation, stonemasonry work, facade construction, and more. The drill also offers a wide drilling range from dia. 12 mm to 202 mm for hand-held diamond core drilling and dia. 12 mm to 137 mm with the BS drill stand for wet drilling. With electronic overload protection and soft start, this core drill ensures safety and efficiency in all drilling tasks.
APPLICATIONS
Drilling in reinforced concrete, granite, marble, sandstone, natural stone, masonry, sand-lime brick, poroton, plastic materials and wood
Hand-held or stand mounted drilling, depending on material wet or dry
Drilling through-holes for pipes and power lines or drillings for reinforcing bars
Installation holes for stair and bridge railings or fences
Gardening and landscaping, stonemasonry work
Steel and metal structures, facade construction
FEATURES
Enormous drilling range, hand-held diamond core drilling from a diameter of dia. 12 mm
Efficient drilling performance, especially when drilling small to medium diameters
Comfortable working even in confined spaces, up a ladder or also overhead, thanks to the compact angular design and a machine length of only 39 cm
Time-saving positioning with quick centring bit
Quick release system for rapid core bit change and drill core removal
Safety clutch with anti-lockup system
Ultra-efficient dust extraction during dry drilling
Screw-in auxiliary handle for non-fatiguing, back-saving posture when drilling downwards
Precise preselection and constant control of water flow rate
Rapid changeover from hand-held to stand mounted drilling
Electronic overload protection and soft start
TECHNICAL SPECIFICATION
Rated power 2000 W
Machine weight 6.4 kg
Chuck G 1/2"
Rated speed 1st/2nd/3rd gear 690/1290/2420 rpm
Drilling range with diamond core bit, hand-held, dry dia. 52 - 202 mm
Drilling range with diamond core bit, with BS drill stand, wet dia. 12 - 137 mm
Drilling range with LS hole saw in plastic, hand-held dia. 40 - 162 mm
Drilling range with LS hole saw in plastic, with BST drill stand dia. 40 - 162 mm
Drilling range with LB wood hole saw, hand-held dia. 40 - 162 mm
Drilling range with LB wood hole saw, hand-held dia. 42 - 202 mm
SCOPE OF DELIVERY
Assembled DIA 203 W DIAMOND CORE DRILL
DUSS Storage Case
Operation Manual
12 Months as per Australia Consumer Law.
SPARE PARTS SERVICE
You should rely on the original when choosing spare and wear parts. This means more safety for you and no unnecessary downtime. DUSS original parts are specially designed to ensure that important characteristics such as reliability, comfort and performance are assured for a long time.
10 YEARS SPARE PARTS SERVICE
We guarantee the continuous availability to our customers of all spare parts for the current product range and assure them that we will continue to supply spare parts for at least ten years after the production of the corresponding machine has been discontinued. As a rule, our great vertical depth of production ensures a reliable supply of spare parts over many years.
READY FOR USE QUICKLY.
By a high level of stock, we can react quickly and at short notice on requests for spare parts.
