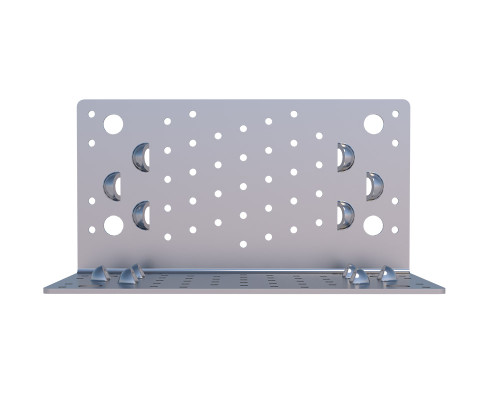

Shearing Plate
The shearing plate is a specially designed plate connector for absorbing shearing forces in modern timber construction. Its versatile holes for anchoring in wood and concrete make it suitable for use in timber frame and solid timber construction. Made from galvanized S250 construction steel, this shearing plate offers many advantages including a high shear load-bearing capacity, fewer connectors required, and various areas of use.
Product Uses
The shearing plate is suitable for use in timber frame and solid timber construction. Its versatile design allows for installation in both wood and concrete, making it a highly adaptable solution for various construction needs.
Technical Data
The shearing plate features 6 slanted screw connection holes and 41 holes, which can be used for angle-bracket screws (ABSs) or anchor nails. The plate also includes two additional partial utilisations of the fixing holes, which are available as static-type calculations. Anchoring in concrete can be done using the holes (Ø 14 mm) provided for this purpose with rock concrete screw or bolt anchors.
With its high shear load-bearing capacity and versatile design, the shearing plate is an ideal solution for modern timber construction projects. Its galvanized construction steel material ensures durability and long-lasting use, making it a reliable choice for any construction project.
