Premium version, fully ground quality with two main cutting edges and two taper taps. Specially ground spiral for a very good chip removal
For exact drilling in all, particularly hard materials. Also suitable for some plastics, like acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. Specially designed flutes ensure a very good chip removal
Premium quality at a fair price. Specially suitable for stationary use. For soft wood the cordless drill is only limited applicable, due to the low rotation speed. Here we recommend product lines 1591 with cylindrical shank or 1596/1597 with hexagonal shank
1594 |
Excellent
|
Brad Point Drill Bit, HSS-G |
---|
Art.- No. | O-Ø [mm] |
SØ [mm] |
OAL [mm] |
Effective L. [mm] |
---|---|---|---|---|
1594.020 | 2,0 | 2,0 | 49 | 22 |
1594.025 | 2,5 | 2,5 | 57 | 25 |
1594.030 | 3,0 | 3,0 | 60 | 33 |
1594.035 | 3,5 | 3,5 | 70 | 39 |
1594.040 | 4,0 | 4,0 | 75 | 43 |
1594.045 | 4,5 | 4,5 | 80 | 47 |
1594.050 | 5,0 | 5,0 | 85 | 52 |
1594.055 | 5,5 | 5,5 | 92 | 57 |
1594.060 | 6,0 | 6,0 | 92 | 57 |
1594.065 | 6,5 | 6,5 | 100 | 63 |
1594.070 | 7,0 | 7,0 | 108 | 69 |
1594.075 | 7,5 | 7,5 | 108 | 69 |
1594.080 | 8,0 | 8,0 | 115 | 75 |
1594.085 | 8,5 | 8,5 | 115 | 75 |
1594.090 | 9,0 | 9,0 | 125 | 81 |
1594.095 | 9,5 | 9,5 | 125 | 81 |
1594.100 | 10,0 | 10,0 | 130 | 87 |
1594.105 | 10,5 | 10,5 | 130 | 87 |
1594.110 | 11,0 | 11,0 | 140 | 94 |
1594.115 | 11,5 | 11,5 | 140 | 94 |
1594.120 | 12,0 | 12,0 | 150 | 101 |
1594.125 | 12,5 | 12,5 | 150 | 101 |
1594.130 | 13,0 | 13,0 | 150 | 101 |
1594.135 | 13,5 | 13,0 | 160 | 108 |
1594.140 | 14,0 | 13,0 | 160 | 108 |
1594.145 | 14,5 | 13,0 | 168 | 114 |
1594.150 | 15,0 | 13,0 | 168 | 114 |
1594.155 | 15,5 | 13,0 | 176 | 120 |
1594.160 | 16,0 | 13,0 | 176 | 120 |
1594.162 | 16,2 | 13,0 | 200 | 140 |
1594.165 | 16,5 | 13,0 | 180 | 120 |
1594.180 | 18,0 | 13,0 | 190 | 130 |
1594.190 | 19,0 | 13,0 | 192 | 132 |
1594.200 | 20,0 | 13,0 | 200 | 140 |
Art.- No. | Description |
---|---|

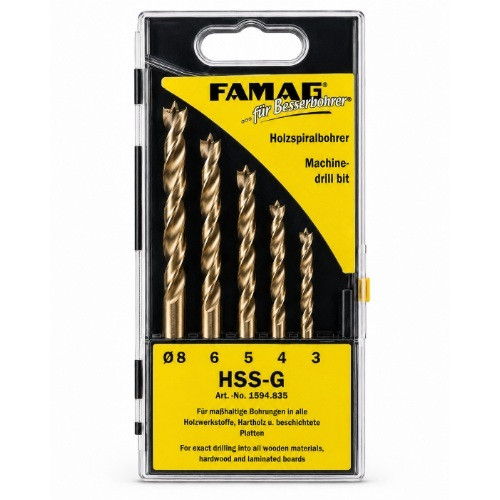

1594.835 | 5 pcs. Set in plastic box Ø 3, 4, 5, 6, 8 mm |
1594.845 | 5 pcs. Set in plastic box Ø 4, 5, 6, 8, 10 mm |
3575.505 | 6 pcs. Set in wooden case, brad point drill bit HSS, type 1594 Ø 3, 4, 5, 6, 8 mm incl. VARIO Countersink 2202 (90°) |
1594.507 | 7 pcs. Set in wooden case Ø 3, 4, 5, 6, 8, 10, 12 mm |
1594.838 | 8 pcs. Set in plastic box Ø 3, 4, 5, 6, 7, 8, 9, 10 mm |
1594.510 | 10 pcs. Set in wooden case Ø 3, 4, 5, 6, 8, 10, 12, 13, 14, 16 mm |
1594.819 | 19 pcs. in Rose plastic box Ø 1 - 10 mm, 0,5 mm steps |
1594.825 | 25 pcs. in Rose plastic-box Ø 1 - 13 mm, 0,5 mm steps |
