One-piece drill bit (C6,3) with brad point, two main cutting edges, two protruding cutting edges and a hexagonal shank for bit holder (1/4“; C 6,3)
For pre-drilling and lightning-fast tool change to screw bit, drilling in all wooden materials and many plastics
Good handling with cordless screwdriver. The specially smooth chip flutes enable a good chip removal. Also available as twist drill product line 2596, see twist drills and countersinks
1597 |
Profi
|
Brad Point Drill Bit, HSS-G, Long Version |
---|
Art.- No. | O-Ø [mm] |
Shank [mm] |
OAL [mm] |
Effective L. [mm] |
---|---|---|---|---|
1597.030 | 3 | C 6,3 | 70 | 45 |
1597.035 | 3,5 | C 6,3 | 70 | 45 |
1597.040 | 4 | C 6,3 | 75 | 50 |
1597.045 | 4,5 | C 6,3 | 80 | 55 |
1597.050 | 5 | C 6,3 | 86 | 61 |
1597.055 | 5,5 | C 6,3 | 93 | 68 |
1597.060 | 6 | C 6,3 | 93 | 68 |
1597.065 | 6,5 | C 6,3 | 101 | 76 |
1597.070 | 7 | C 6,3 | 109 | 84 |
1597.075 | 7,5 | C 6,3 | 109 | 84 |
1597.080 | 8 | C 6,3 | 117 | 92 |
1597.085 | 8,5 | C 6,3 | 117 | 92 |
1597.090 | 9 | C 6,3 | 125 | 100 |
1597.100 | 10 | C 6,3 | 133 | 108 |
1597.110 | 11 | C 6,3 | 142 | 117 |
1597.120 | 12 | C 6,3 | 151 | 126 |
1597.130 | 13 | C 6,3 | 151 | 126 |
Art.- No. | Description |
---|---|
1597.805 | 5 pcs. Set in PVC-Box Ø 3, 4, 5, 6 and 8 mm |

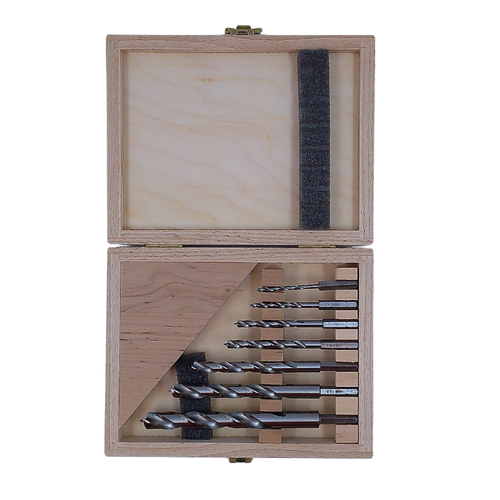

1597.507 | 7 pcs. Set in wooden case Ø 3, 4, 5, 6, 8, 10, 12 mm |
1597.511 | 11 pcs. Set in wooden case Ø 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 mm |
