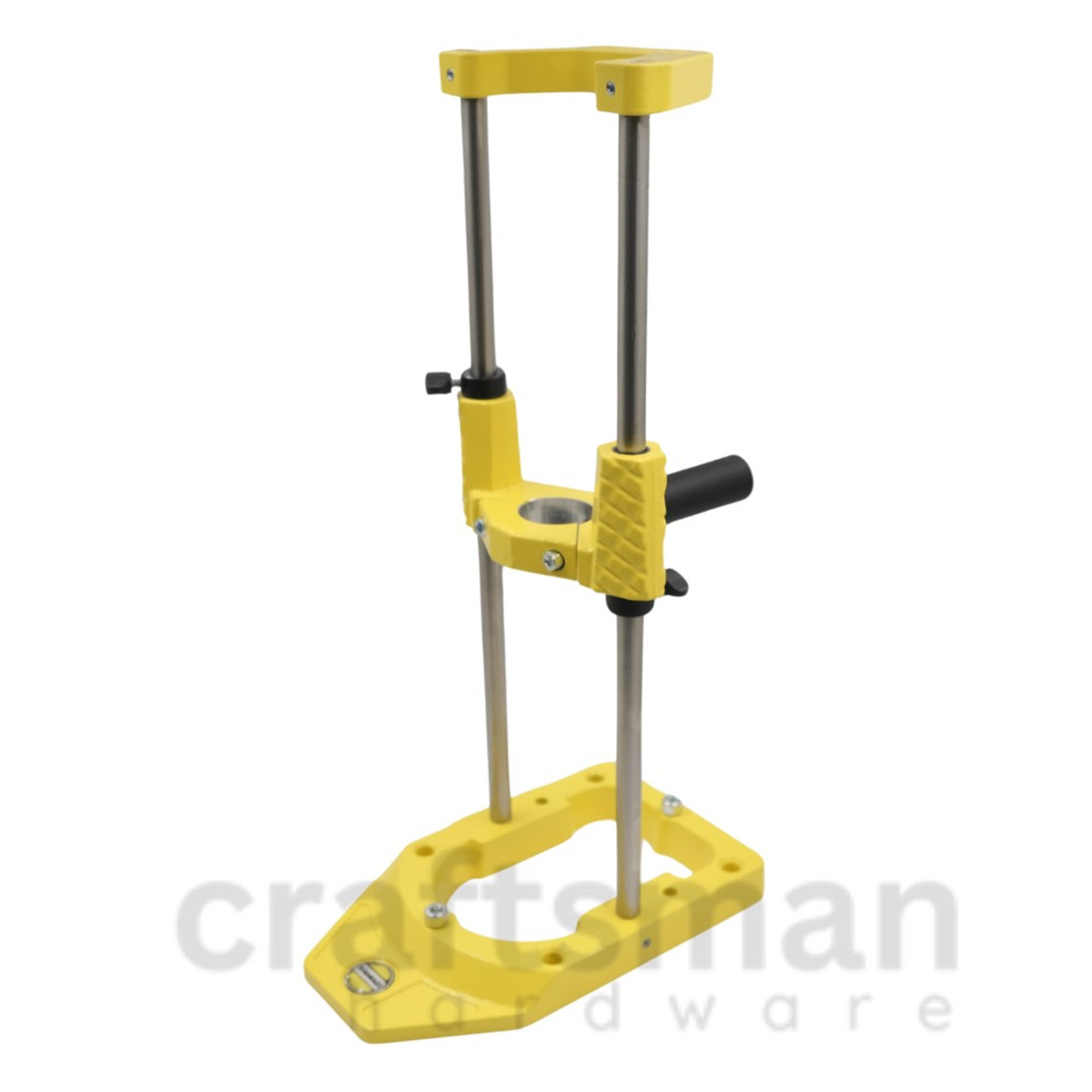

FAMAG Drill Guides | 1405 Depth of 350mm Drill Guides Fixed
Get precise and easy drilling with FAMAG Drill Guides 1405 with 350mm depth. Adjustable depth stops for repeat depths and compatible with FAMAG Forstner Bits. Perfect for accurate drilling at a fixed 90° setting angle.
Viewing
Description
Get precise and easy drilling with FAMAG Drill Guides. With adjustable depth stops for repeat depths. The 1405 Drill Guide allows for tooling include FAMAG Forstner Bits to be used, and be applied at a fixed 90° setting angle.
SUITABILITY
Cross Laminated Timber CLT
Glue Laminated Timber GLT
Parallel Laminated Timber PLT
Boards (MDF, Chipboard, OSB)
Solid Timbers
BENEFITS
Precise fitting when used with FAMAG Drill Bits
Fixtures which allow for clamping the Drill Guide to beams
SPARE PARTS LIST
1402.000 Clamping Fixtures
1402.901 Tails for Extending Clamping Capacity to 140mm
CAPABILITIES
Drill Length 350mm
Drill Depth 320mm
PURPOSE
Precise drilling in 90° setting angle
TECHNICAL
Shank For power drills collar diameter 43 mm
Tool Material Cast Aluminium
Version Fixed 90°
Outside Dimensions Base Plate 250mm x 150mm
Inside Dimensions Base Plate 135mm x 90mm
Overall Height 490mm
