With additional handle, two stageless adjustable depth stops and two spiral springs for back stroke of the power drill. With adjustable plate for drill bush for exact guidance of the drill bit. The product line 1406 is delivered without springs and drill bushing plate
Precise drilling in exact 90° to 45° stepless pivoted setting angle . Additional guidance of the drill bits by drill bushing plate. Easy back stroke of the power drill by spiral springs. 1402.000: mountable on all FAMAG drill rigs with square foot
For power drills 43 mm. For drill bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm. Version with two solid guide rods
1404 |
Excellent
|

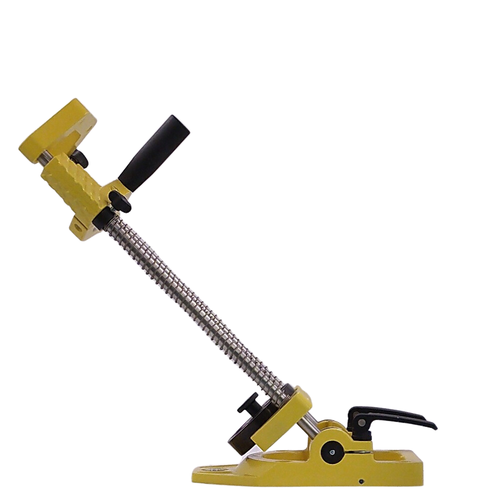

Drill Rig, Pivoting Version |
---|
Art.- No. | For drill length [mm] |
Drilling depth [mm] |
Fixture | Drill bushing plate | Foot measure outside [mm] |
Foot measure inside [mm] |
OAL [mm] |
---|---|---|---|---|---|---|---|
1404.320 | 320 | 160 | - | incl. | 250 x 150 | 135 x 90 | ~490 |
1404.320 | 320 | 160 | - | incl. | 250 x 150 | 135 x 90 | ~490 |
1404.322 | 320 | 160 | incl. | incl. | 250 x 150 | 135 x 90 | ~490 |
1404.322 | 320 | 160 | incl. | incl. | 250 x 150 | 135 x 90 | ~490 |
Art.- No. | |||||||
---|---|---|---|---|---|---|---|
1404.460 | 460 | 250 | - | incl. | 250 x 150 | 135 x 90 | ~630 |
1404.460 | 460 | 250 | - | incl. | 250 x 150 | 135 x 90 | ~630 |
1404.462 | 460 | 250 | incl. | incl. | 250 x 150 | 135 x 90 | ~630 |
1404.462 | 460 | 250 | incl. | incl. | 250 x 150 | 135 x 90 | ~630 |
Art.- No. | |||||||
---|---|---|---|---|---|---|---|
1404.650 | incl. | 650 | 430 | - | 250 x 150 | ~810 | 135 x 90 |
1404.650 | incl. | 650 | 430 | - | 250 x 150 | ~810 | 135 x 90 |
1404.652 | incl. | 650 | 430 | incl. | 250 x 150 | ~810 | 135 x 90 |
1404.652 | incl. | 650 | 430 | incl. | 250 x 150 | ~810 | 135 x 90 |
Art.- No. | max. clamping width [mm] |
Description | |
---|---|---|---|
1402.000 | 0 - 90 | Fixture | |
1402.901 | 200 | Set of Tails for broadening |
