FAMAG Forstner Bit | 1624 BORMAX Tool Steel Forstner Bit . Set 15, 20, 25, 30, 35, 40, 45, 50 mm and Box.
| Image | Product / size | SKU | EAN / UPC | Stock | Option / unit | Pack qty | Qty | Pieces | Weight | Unit price | Line total |
|---|
FAMAG Forstner Bit | 1624 BORMAX Tool Steel Forstner Bit . Set 15, 20, 25, 30, 35, 40, 45, 50 mm and Box.
FAMAG Forstner Bit | 1624 BORMAX Tool Steel Forstner Bit . Set 15, 20, 25, 30, 35, 40, 45, 50 mm and Box.

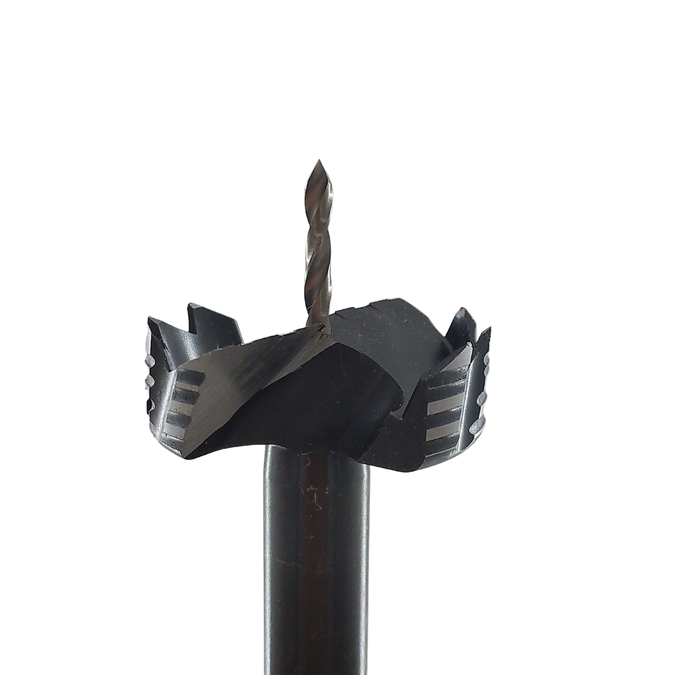

The FAMAG Werkzeugfabrik Bormax 2.0 PRIMA Forstner Bits are designed for boring and countersinking in timber on inclined angles. These Forstner bits feature a replaceable center point with cutting character and two main cutting edges that are staggered and grooved in reverse order. This design reduces the feed force required and minimizes friction and heat buildup, resulting in longer service life and higher drilling quality.
PRIMA version forstner bits, refer to their ability to drill on inclined angles or are not flat surfaces and have a replaceable centre bit sleeve.
SUITABILITY
Cross Laminated Timber CLT
Glue Laminated Timber GLT
Parallel Laminated Timber PLT
Boards (MDF, Chipboard, OSB)
Solid Timbers
BENEFITS
Long service life and high drilling quality due to low heat development
Suitable for freehand drilling and stationary use
Compatible with extension shanks for drilling deep holes
Circumferential cutting edge with longitudinal grooves
INCLUDES
FAMAG Wooden Box
FAMAG 1624 Forstner Bits ⌀ 15, 20, 25, 30, 35, 40, 45, 50 mm
SPARE PARTS LIST
1624.004 4mm Pre-Drill Bit (Individual)
1624.104 4mm Pre-Drill Bit (Pack of 4)
1624.005 4mm Centre Point Bit (Individual)
1624.105 4mm Centre Point Bit (Pack of 4)
PURPOSE
Counterbore holes prior to pre-drilling holes.
Bore holes in timber knots, to repair using FAMAG 1616 Plug Cutters.
TECHNICAL
Shank Hexagon Shank
Tool Material Alloyed Tool Steel
Cutting Edge 2 Grooved Main Cutting Edges and Spurs
Cutting Quality High
