FAMAG Router Bits | 3382 ASSORTMENT Plunge Router Bits 22 Pieces with 8mm Shank

FAMAG Router Bits

Model |

3382.822

Purpose |

8mm Shank Router Bits

Description |

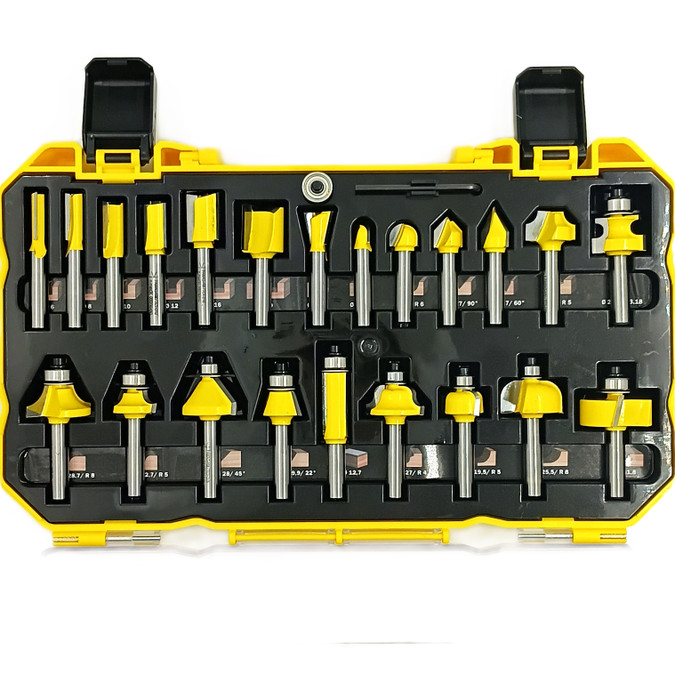

Every router bit finds its safe place in the durable plastic box. Due to the detailed labelling and organizer, you can see the profile of each cutter and its dimensions.

The shanks are machine wet cylindrical ground to the exact diameter of 8.0 mm and thus have a perfect concentricity.

Suits many portable routers such as Festool, Makita, Mafell and RUWI Milling Machine.

Benefits |

1 flush trim bit with ball bearing (Ø 12,7 mm, NL 25,4 mm)

1 dovetail bit (Ø 14,3 mm, NL 12,7 mm)

1 V-groove bit (Ø 12,7 mm, 90°)

1 lettering bit (Ø 12,7 mm, 60°)

2 cove bits (round nose) (Ø 8 mm, R4 mm + Ø 12 mm, R6 mm)

2 cove bits with ball bearing (Ø 19,5 mm, R5 mm + Ø 25,5 mm, R8 mm)

6 straight bits (Ø 6, 8, 10, 12, 16, 20 mm, NL 20 mm)

2 rounding over bits (Ø 22,7 mm, R5 mm + Ø 28,7 mm, R8 mm)

1 chamfer bit (Ø 28 mm, 45°)

1 profile bit (Ø 27 mm, R4 mm)

1 bevel trim bit (Ø 19,9 mm, 22°)

1 rabbeting bit (Ø 31,8 mm, NL 12,7 mm)

1 torus bit (Ø 22,2 mm, R3,18 mm)

1 profile bit (Ø 21 mm, R5 mm)

2 spare ball bearings (Ø 9,5 mm + Ø 12,7 mm)

Need technical advice? |

In order to achieve the best results from your tooling, it is important to run the appropriate RPM on your machine.

Take a look at the total tools solution that is FAMAG Online FAMAG catalogue
