RICON® | Universal wooden connector made of stainless steel

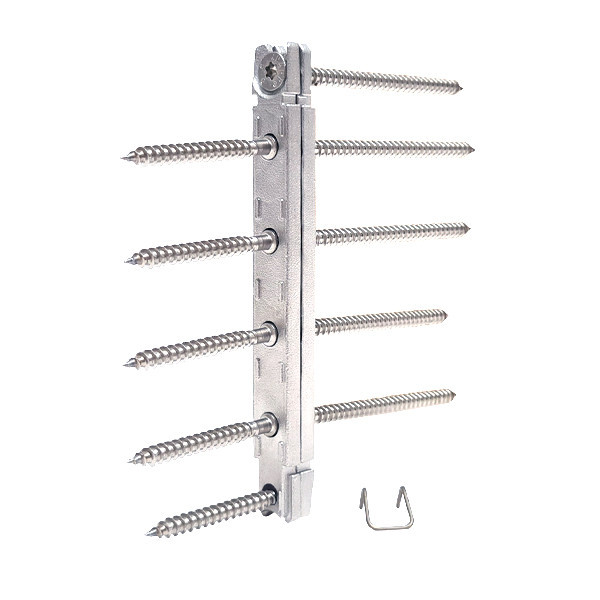

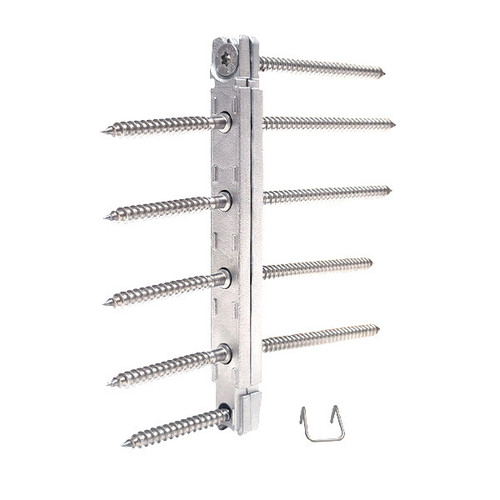

RICON® 120/25 EA Edelstahl (F2,Rk 8,9 kN*)
1 set contains:
1 St. RICON® 120/25 inox AISI 304
je 3 St. RICON® CS-screws inox A2 5x50 TX25 und 5x80 mm TX25,
je 2 St. RICON® CS-screws inox A2 8x50 TX25 und 8x80 mm TX25,
1 St. RICON® locking clip inox 25 mm

Materials and applications:

• Particular woods, such as oak, douglas fir, larch and impregnated woods, such as Accoya
• Indoor and outdoor: furniture, balcony, deck, carport, playground and sports equipment, pergola and other buildings with static standards DIN 1052

Features:

• Slim profile – timber width from 20 mm upwards
• Universal connection to all wood materials, indoor and outdoor, steel, concrete for sizes 100×40 and 100×30
• Versatile – can be used for single joint and double joint connection
• Flexible – assembly can be from the outside and inside
• Adjustable – to balance out possible joint tolerances
• Tested, patented and ETA approved

Load capacity tables

The interactive tables in Excel, available for download by clicking on the link below, provide the load capacity according to ETA-10/0189. This tool helps to quickly and easily select the connectors appropriate for the type of connection based on the service class and the type of timber.

Load Capacity Table

ETA100189
