KNAPP Connections | K273 RICON 160/25 Universal Beam Connection in Stainless Steel (EA)
RICON® | Universal wooden connector made of stainless steel
RICON® 160/25 EA Stainless Steel(F2,Rk 10,4 kN*)

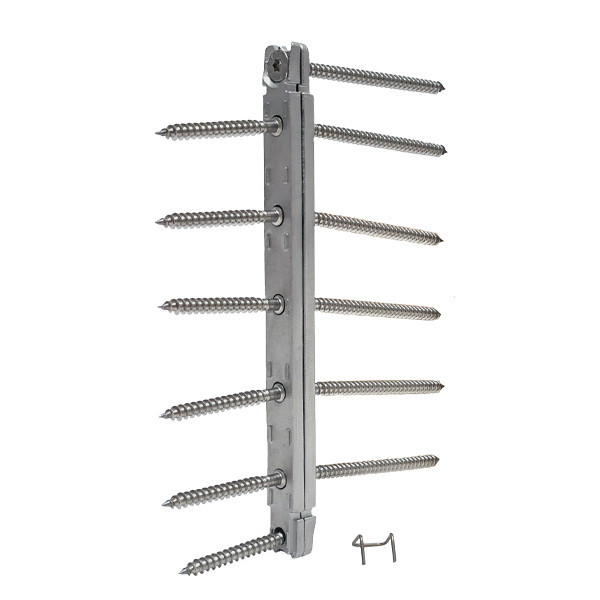

1 set contains:
1 pc. RICON® 160/25 Stainless Steel AISI 304,
4 pc. RICON® CS-screws inox A2 5x50 und 5x80 mm,
2 pc. RICON® CS-screws inox A2 8x50 und 8x80 mm,
1 pc. RICON® locking clip inox 25 mm
Materials and applications:
- Particular woods, such as oak, douglas fir, larch and impregnated woods, such as Accoya
- Indoor and outdoor: furniture, balcony, deck, carport, playground and sports equipment, pergola and other buildings with static standards DIN 1052
Features:
- Slim profile – timber width from 20 mm upwards
- Universal connection to all wood materials, indoor and outdoor, steel, concrete for sizes 100×40 and 100×30
- Versatile – can be used for single joint and double joint connection
- Flexible – assembly can be from the outside and inside
- Adjustable – to balance out possible joint tolerances
- Tested, patented and ETA approved
Load capacity tables
The interactive tables in Excel, available for download by clicking on the link below, provide the load capacity according to ETA-10/0189. This tool helps to quickly and easily select the connectors appropriate for the type of connection based on the service class and the type of timber.
