RICON® | Universal wooden connector made of stainless steel

RICON® 80/30 EA stainless steel (F2,Rk 7,5 kN*)

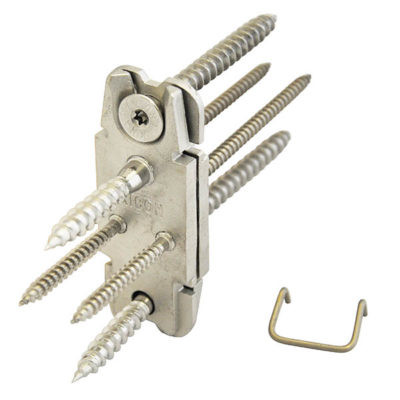

1 set contains: 2 pcs. RICON® 80/30 stainless steel A2, 1 pcs. each RICON® CS-screws stainless steel A2 5x50 and 5x80 mm, 2 pcs. each RICON® CS-screws stainless A2 steel 8x50 and 8x80 mm, 1 pc. RICON® locking clip stainless steel A2 30 mm. (Suitable Jig: Routing Jig Art. No. K501 Multi F30)

Materials and applications:

• Particular woods, such as oak, douglas fir, larch and impregnated woods, such as Accoya
• Indoor and outdoor: furniture, balcony, deck, carport, playground and sports equipment, pergola and other buildings with static standards DIN 1052

Features:

• Slim profile – timber width from 20 mm upwards
• Universal connection to all wood materials, indoor and outdoor, steel, concrete for sizes 100×40 and 100×30
• Versatile – can be used for single joint and double joint connection
• Flexible – assembly can be from the outside and inside
• Adjustable – to balance out possible joint tolerances
• Tested, patented and ETA approved

Load capacity tables

The interactive tables in Excel, available for download by clicking on the link below, provide the load capacity according to ETA-10/0189. This tool helps to quickly and easily select the connectors appropriate for the type of connection based on the service class and the type of timber.

Load Capacity Table

ETA100189
