RICON® | The connector for main and secondary beam up to 26 kN*

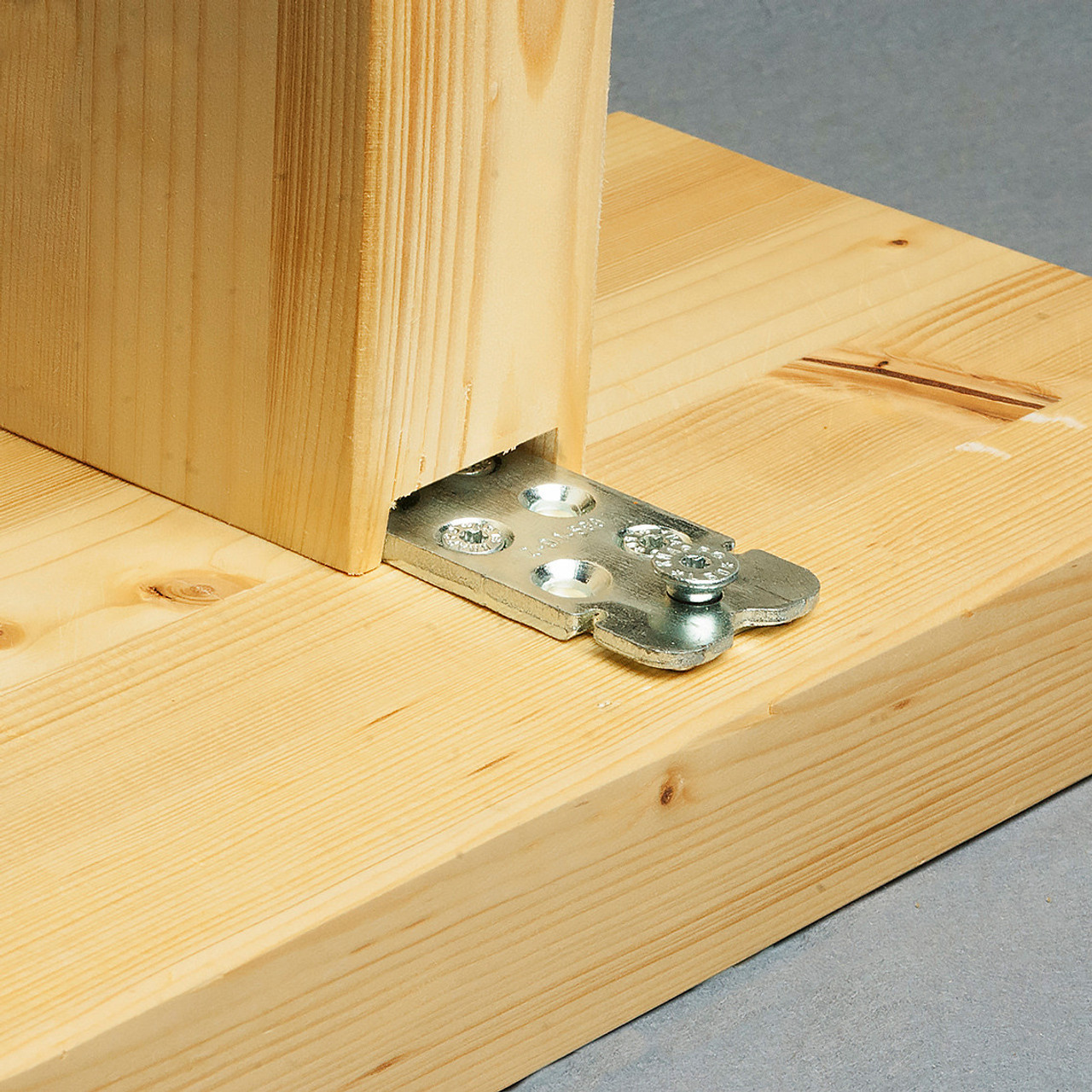

The main and secondary beam joint connector RICON® consists of two identical connector plates made of steel. An optional lock can be installed to latch the connector. The RICON® is recessed and non-visible, and can be used with timber widths as little as 50 mm.

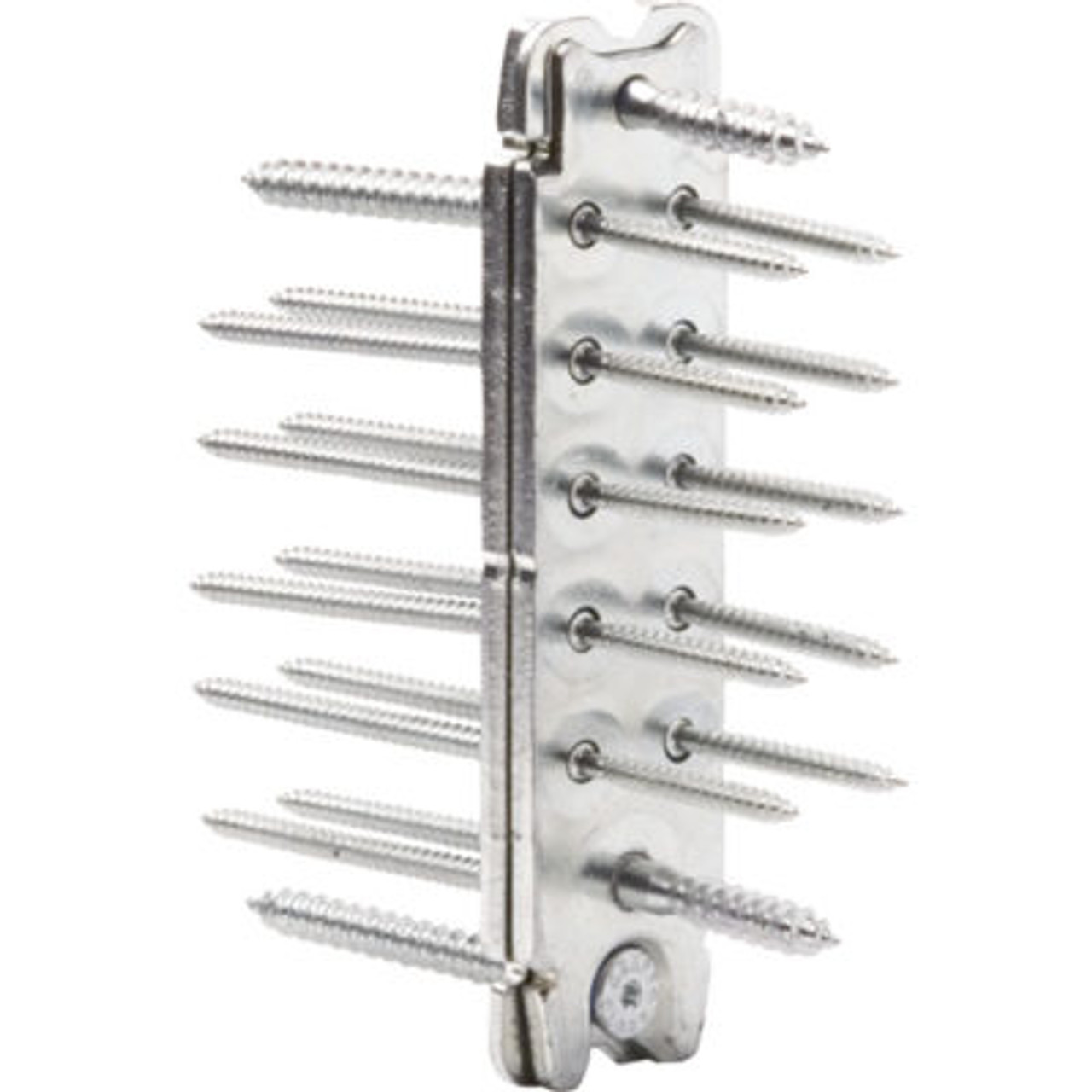

Consisting of: 1 pair RICON 160/40, 6 pcs. each RICON CS screws 5x50 and 5x80 mm, 2 pcs. each RICON CS screws 8x50 mm and 8x80 mm, 1 pc. RICON locking clip
Width:40mm, Height 160mm
System advantages:
Applications for concealed main – secondary beam connections
Slim profile – timber width from 50 mm upwards
Universal access to all wood materials, steel or concrete
High degree of prefabrication – fast and exact mounting on-site
Elements are joint together without screwing
Adjustment of distance between joints and building tolerances
Fire resistance (DIN 4102-2) by 4-sided concealed mounting
Application admissible also with interlayer
Dismounting and remounting possible for several times
Increased resistance to corrosion for indoor swimming pools, riding halls, stables and agricultural buildings
ETA additionally with hardwood material
LOAD CAPACITY TABLES
The interactive tables in Excel, available for download by clicking on the link below, provide the load capacity according to ETA-10/0189. This tool helps to quickly and easily select the connectors appropriate for the type of connection based on the service class and the type of timber.
