MAFELL Band Saw | Z5 Ec 2250 W 305mm Hand Band Saw

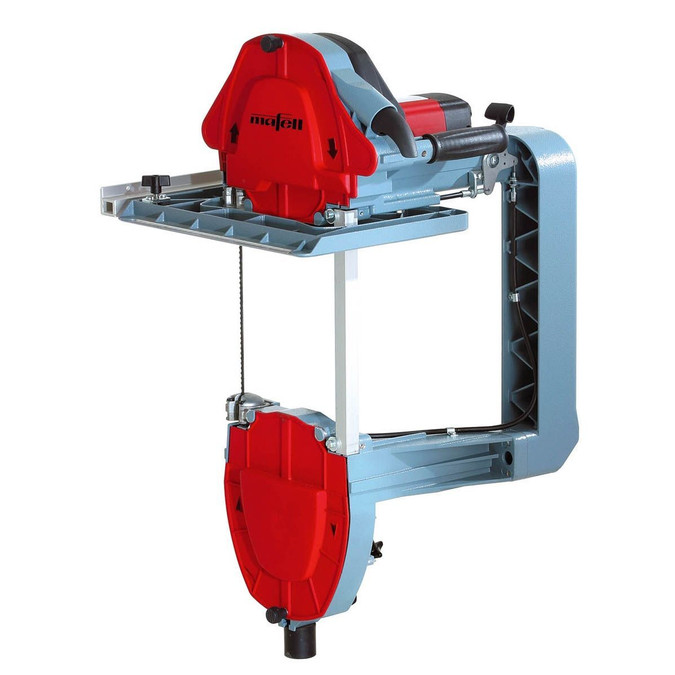

MAFELL Portable Band Saw Z 5 Ec
MAFELL Z 5 Ec hand band saw: lightweight (13.7kg), high-performance, and precise. CUprex motor, magnesium die-cast components, and ball-bearing guides for excellent cutting. 305mm cutting depth, perfect squareness, and chip-free scribe line visibility. Ideal for longitudinal and cross sections, tails and profiles, notch cuts, and laminations in solid wood and glued laminated timber. Also suitable for slanted cuts and oblique notches (two-man operation). Perfect for demanding woodworking applications.
APPLICATIONS
Cross-sections and longitudinal cuts
Bevel cuts up to 30°
Notch cuts and laminations
Tails and profiles
Material use e.g.: solid wood, glued laminated timber, insulation material, sandwich panels
FEATURES
The back-toothed saw blade makes it easier to move back in the wood - especially easy if the saw blade is blocked with the mechanical brake.
The spring preload of the lower guide roller ensures easy, quick belt changes.
With voltage drop switch to prevent uncontrolled restart after a power failure.
The unique pivoting saw blade guide enables right-angled cuts up to 90 mm deep without the second saw blade touching the material, e.g. when making joins.
TECHNICAL SPECIFICATION
Rated power 2250 W
Machine weight 13.6 kg
Voltage 230 V
Nominal idle speed 650 - 1550 rpm
Cutting depth 305 mm
Swivel Range 0 - 30 °
SCOPE OF DELIVERY
Assembled MAFELL Z 5 Ec
Saw Band 8mm wide, 4 Z/inch with back toothing
Saw Band 8mm wide, 4 Z/inch
Saw Band 6mm wide, 4 Z/inch
Handle for two-man use 203824
Rip Fence
Operation Manual
Spare Parts
