MAFELL Chain Mortiser | SG400 Slot Mortising Attachment for LS 103
The Mafell SG 400 Slot Mortising Attachment is expertly designed for use with the LS 103Ec chain mortise. It features a secondary depth stop for enhanced accuracy, a grease gun for easy maintenance & a 45° tilting capability for versatile application
Viewing
Description

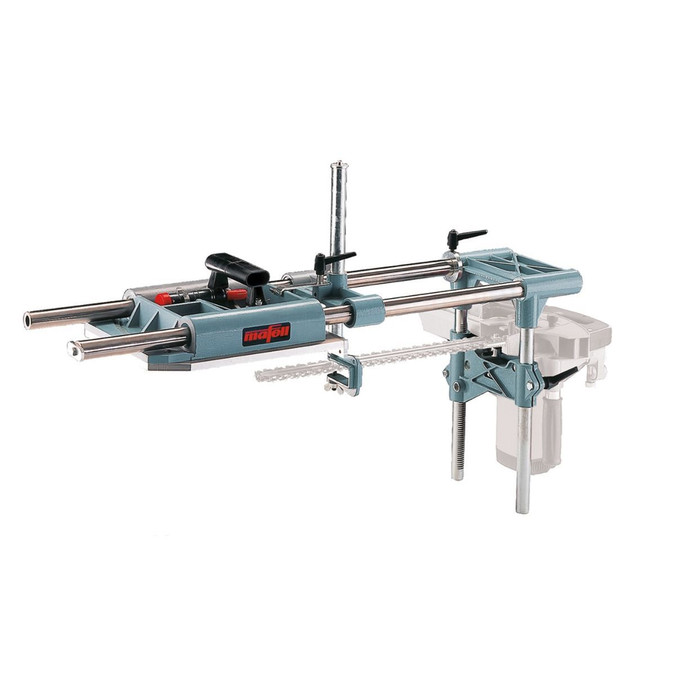

Mafell SG 400 Slot Mortising Guide for LS 103Ec
The SG 400 slot mortising guide is designed for safe and precise plunging up to 15-11/16" (400mm) deep, making it an ideal addition to the LS 103Ec chain mortiser. This guide features:
- Secondary depth stop for added precision
- Grease gun for easy maintenance
- 45° tilting capability for versatility
- Adjustable vertical spacing with exact millimeter measurements
Compatibility and Upgrades
Users of the FG 150, SG 230, or SG 500 guides can convert to the SG 400 guide by ordering the corresponding 11mm or 14mm chain, bar, and sprocket. Additionally, this guide is compatible with the legacy LS 103 (non-Ec) chain mortiser.
Standard Inclusion
The SG 400 guide comes standard with the LS 103Ec Deep Slot Mortiser (SG 400 Model).
Key Applications
The SG 400 guide, in conjunction with the LS 103Ec chain mortiser, is perfect for processing large glued beams to insert connecting pieces. The guide's exact coordination with the basic machine ensures a slot depth of up to 400mm.
Technical Specifications
- Slot depth (vertical): 300mm
- Slot depth (horizontal): 400mm
- Slot width (with 300mm set): 6-17mm
- Slot width (with 400mm set): 10-17mm
- Slot length: 50mm
- Weight: 24.8kg
