MAFELL Planer | ZH 320 Ec Cut Width 320mm Carpentry Planer with 2700 W

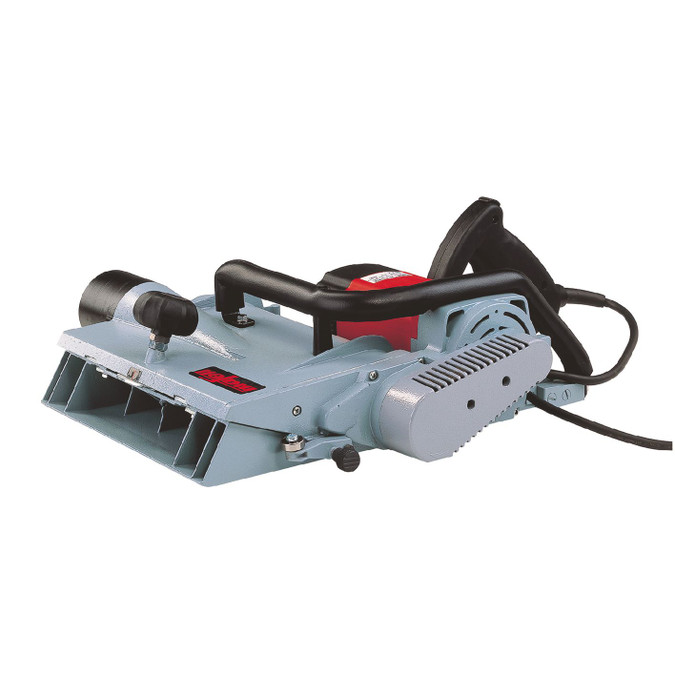

MAFELL ZH 320 Ec Cut Width 320mm Carpentry Planer with 2700 W

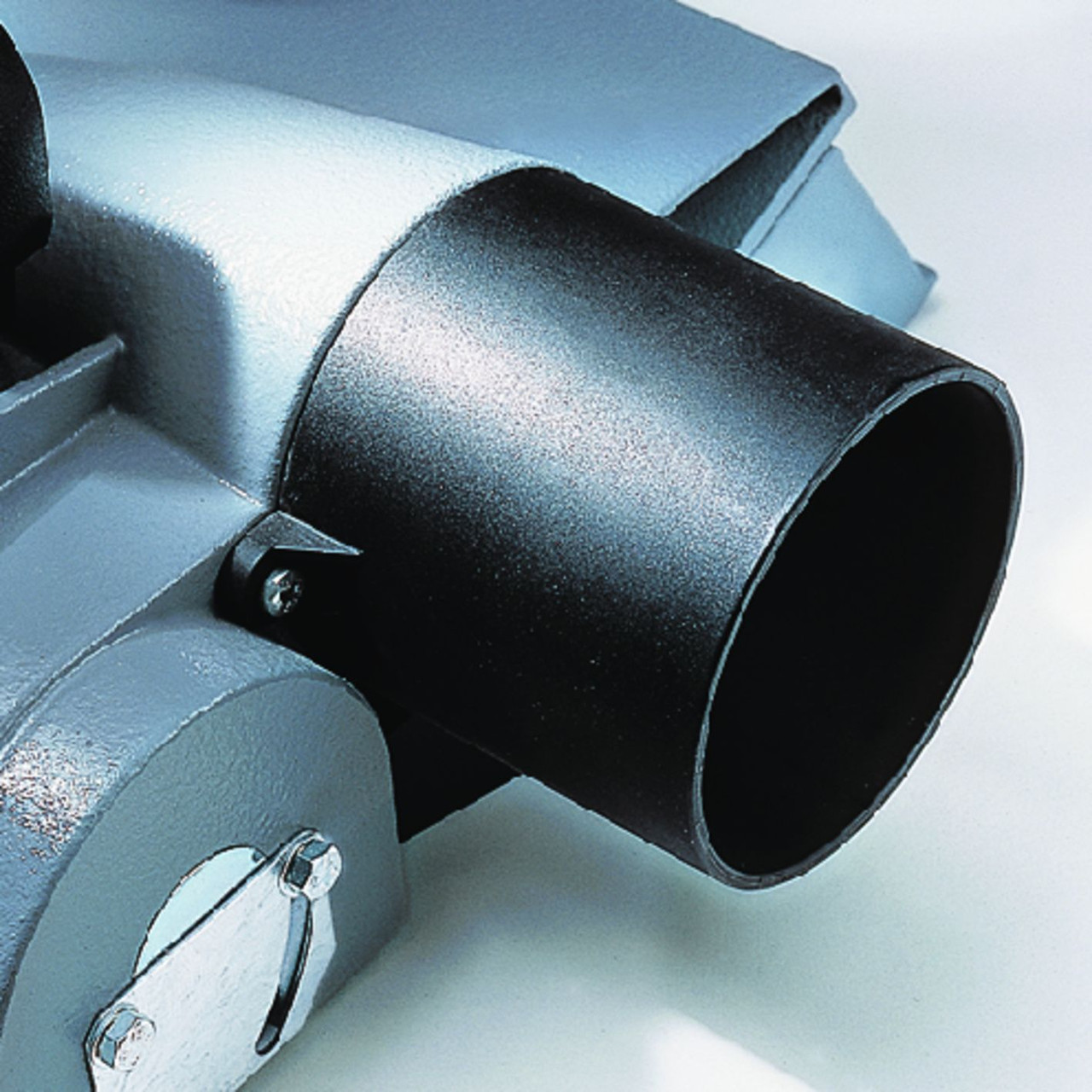

  • The innovative chip ejection system with excellent chip removal through increased air flow and innovative air flow banishes blockages caused by wet wood shavings to the past!
  • Only with the development of the 2700 W motor was it possible to achieve a planing width of 320 mm with a light current motor.
  • Thanks to consistent lightweight construction, the solid cast construction weighs only 14 kg.
  • As with most MAFELL machines, the intelligent control electronics work in the background. For soft start and constant speed under load, as well as for a machine-friendly speed reduction when idling and for overload protection.
  • The highly effective tool brake stops the planer shaft in seconds after it is switched off. A detail, but important for your safety, even after planing.

High quality standard - lower machine costs and longer service life.

Sophisticated, practice-oriented handle ergonomics and low weight - for exemplary handling.

With starting roller for maximum use of the planing width.

Disposable reversible blade system - means that time-consuming adjustment of the planer blades is no longer necessary.

  • Planing work up to 320 mm
  • Material use e.g.: solid wood
Planing width 320mm
Chip removal 0 - 3mm
Planer shaft Ø 74mm
Nominal idle speed 8500 rpm
Nominal input 2700 watts
Weight 14kg
Universal motor 230V / 50Hz

1 reversible blade, 1 pair, HL steel; Order No. 091791

1 open-end wrench 8 mm; Order No. 093258

1 connection cable 10 m; Order No. 087378

Planing width 320 mm

Chip removal 3 mm

In the carton
