THE DIFFERENCE

Just think about about 1300 m/min cutting capacity. It is not a matter of there are machines that can cut at the same rate, it is a matter of whether they are built to handle that workload under pressure.

This is why they construct with the 400v motor, and provide twin 100mm suction nozzles, because that is a lot of cutting, very quickly, and you have to get rid of the waste, faster than it can cut.

ALL-CAST WHEELS

Solid all-cast wheels with vulcanised and cambered rubber coating for safe and quiet drive. The dynamically balanced solid cast wheels ensure vibration-free concentricity and are equipped with a coil spring for automatic sawblade tensioning. They also have an integrated vibration-damping wheel bearing.

TABLE TILTING DEVICE

The table tiltingvel device with scale and clamping lever is infinitely adjustable up to 45°.

BANDSAW BLADE GUIDE APA 2

The high-performance bandsaw blade guide APA 2 made of hardened back and side rollers ensures the highest precision and long service life of the sawblade.

INTEGRATED BLADE TENSION INDICATOR

The recommended tension can be set via the integrated blade tension indicator with viewing window.

FOLDABLE RIP FENCE

The rip fence can be set to two different positions: High for wide or tall parts and flat for small parts.

TECHNICAL SPECIFICATION

H x L x W = 1740 x 760 x 490 mm

Wheel diameter 400 mm

Saw blade speed 1400 m/min

Cutting height 205 mm

Cutting width 385 mm

Saw blade length max. 3330 mm

Saw blade witdh min. / max. 15 mm / 20 mm

Table top size 570 x 420 mm

Table height 900 mm

Emission pressure level at working area: idle 67 dB (A) | processing 89 dB (A) | incl. uncertainty = 4 dB (A)

SCOPE OF DELIVERY

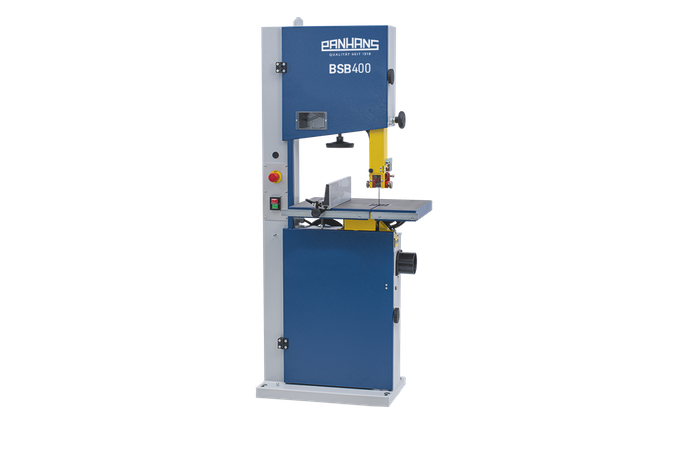

Assembled BSB400 Cut Height 205mm /8" Bandsaw with 1.5HP

Suction nozzles 2 x Ø 100 mm

Delivered on-site in Australia & New Zealand.

Operation Manual
