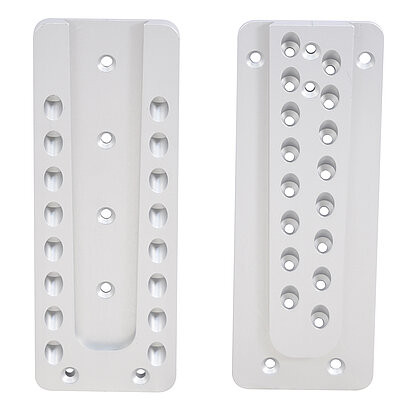

PITZL Connections | HVP Concealed Beam Connections 80mm x 220mm x 12mm
PITZL Connections | HVP Concealed Beam Connections 80mm x 220mm x 12mm
Creating a main and secondary beam connection from wood to wood
Main-secondary beam connector according to ETA-15/0187 made of an aluminum alloy including 44 pcs. Heco Topix Ø 5,0 x 60 / 80 / 100 mm, yellow-galvanized / zinc-nickel, suitable for the following design-relevant loads:
PURPOSE
Timber Structure Engineering
Main and Secondary Beam Connection
Wood to Wood Solutions
SUITABILITY
Cross Laminated Timber CLT
Glue Laminated Timber GLT
Solid Timber
SUMMARY
Item No. 88322.0000
Dimensions W x H x D (mm) 80 x 220 x 12
Number of Screws 44
Screw Size Ø 5 x 60 - 100
Main Beam Min. Wood Dimensions 70 x 240
Secondary Beam Min. Wood Dimensions 100 x 240
Packaged Unit Quantity 10
TECHNICAL Grade C24
F 1,Rk = 22,85 / 30,34 / 37,63 kN - Force acting in direction of the secondary beam
F 2,Rk = 58,75 / 78,01 / 96,76 kN - Force acting in direction of insertion
F 3, Rk = 0,00 kN - Force acting against direction of insertion
F 4,Rk = 32,71 kN - Force acting perpendicular to direction of insertion
M tor,Rk = 1061,64 kN - Rotation moment in the axis of the secondary beam
TECHNICAL Grade GL24h
F 1,Rk = 24,66 / 32,74 / 40,61 kN - Force acting in direction of the secondary beam
F 2,Rk = 63,41 / 84,20 / 104,42 kN - Force acting in direction of insertion
F 3, Rk = 0,00 kN - Force acting against direction of insertion
F 4,Rk = 34,31 kN - Force acting perpendicular to direction of insertion
M tor,Rk = 1113,46 kN - Rotation moment in the axis of the secondary beam
DISCLAIMER
The number and arrangement of the connectors as well as the installation and assembly must be taken from the specifications in accordance with ETA-15/0187 and must be adhered to. In principle, the requirements of DIN EN 1995 apply.
