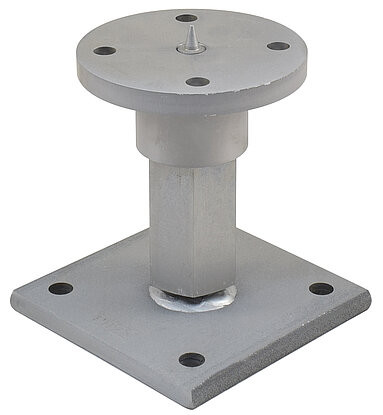

PITZL Post Base | PTP Adjustable Post Square Base with M30 Thread
| Image | Product / size | SKU | EAN / UPC | Stock | Option / unit | Pack qty | Qty | Pieces | Weight | Unit price | Line total |
|---|
PITZL Post Base | PTP Adjustable Post Square Base with M30 Thread
Use your waist and inside-leg measurements to compare the available Blåkläder sizes. Blåkläder also advises choosing trousers according to seat/hip size where you are widest.
PITZL Post Base | PTP Adjustable Post Square Base with M30 Thread
Supporting a wooden column using post supports
Connection to wood construction with PITZL post beam 10529.1093 according to ETA-10/0413. Connection to wood construction with 4 screws diameter 10 mm. Connection to concrete with 4 anchors or concrete screws diameter 10-12.0 mm.
The connection to the concrete of the base plate (140 x 140 x 12) is made using 4 dowels or concrete screws with a diameter of 10-12.0 mm. The load-bearing capacity of the dowels or concrete screws must be verified separately.
PURPOSE
Timber Structure Engineering
Post Base Support
Adjustable Heights
SUITABILITY
Glue Laminated Timber GLT
Solid Timber
SUMMARY
Upper Plate W x H (mm) Ø 120 x 12
Bottom Plate W x D x H (mm) 140 x 140 x 12
Thread M 30 bottom 90
Installation height mm 141 - 201
Hole Ø 13 mm bottom 4
Hole Ø 10.5 mm top 4
TECHNICAL Grade C24
F1,Rk (Compression) = 226 kN Pressure load capacity in direction of wood support
F1,Rk (Tension) = 30 kN Tension load capacity in direction of wood support
F2/3,Rk = 13,3 kN Horizontal load capacity in direction of longer side of base
F4/5,Rk = 13,3 kN Horizontal load capacity in direction of shorter side of base
By using screws Ø 10 x 160 the char. lift value can be increased to 50 kN.
DISCLAIMER
The number and arrangement of the post supports as well as the installation and assembly must be taken from the specifications according to ETA-10/0413 and observed. In principle, the requirements of DIN EN 1995 apply.
