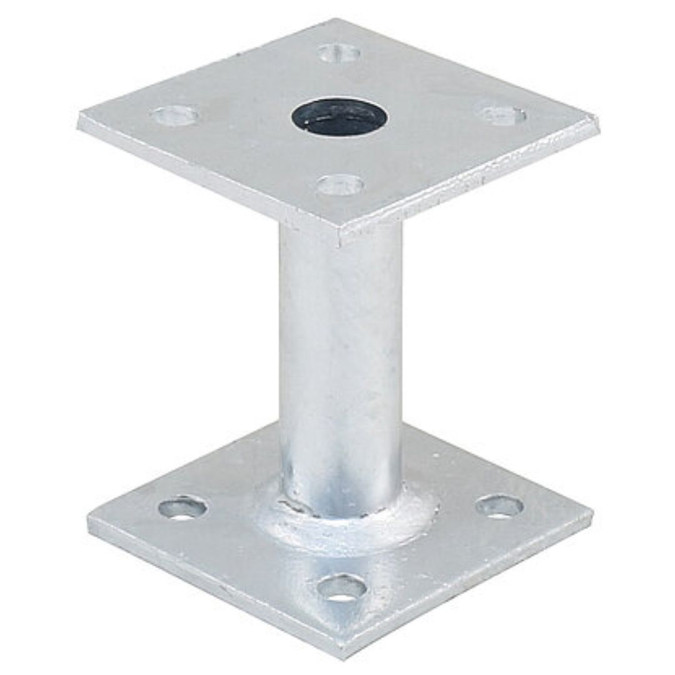

The PITZL RIGID Fixed 27mm Tube Post Base (Item No. 11000.0000) is designed for timber structure engineering, providing robust support for solid timber applications. This post base features a hot-dip galvanized finish for enhanced durability and corrosion resistance.

The upper and bottom plates measure 80 x 80 x 5 mm, with an installation height of 100 mm. The post base accommodates a tube diameter of 27 mm and includes four holes with a diameter of 10.5 mm for secure mounting. It boasts a maximum characteristic pressure bearing capacity of 59.2 kN, ensuring reliable support for various structural applications.

PURPOSE

Timber Structure Engineering

Post Base Support

SUITABILITY

Solid Timber

SUMMARY

Item No. 11000.0000

Upper Plate W x H (mm) 80 x 80 x 5

Bottom Plate W x D x H (mm) 80 x 80 x 5

Installation height mm 100mm

Tube Ø 27mm

Hole Ø 10.5 mm bottom x 4

Hole Ø 10.5 mm top  x 4

Max. characteristic pressure bearing capacity (kN) * 59.2

DISCLAIMER

The number and arrangement of the post supports as well as the installation and assembly must be taken from the specifications according to ETA-10/0413 and observed. In principle, the requirements of DIN EN 1995 apply.
