APPLICATIONS

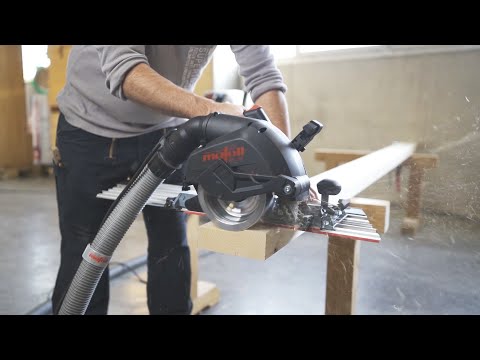

Longitudinal and transverse grooves

Adjusting boards (guiding device)

Fillings in the framework or inserted ceilings

Bevel grooves up to 45°

Material use e.g.: solid wood, panel materials

FEATURES

The design of the NFU 50 impresses with extremely robust, high-quality and precisely manufactured components, such as the lightweight magnesium die-cast housing or the shock-resistant, glass-fiber-reinforced plastic parts. In addition, sophisticated detailed solutions help you in tough work conditions.

The rotatable 58 mm extraction nozzle for large quantities of chips can be positioned using a locking function.

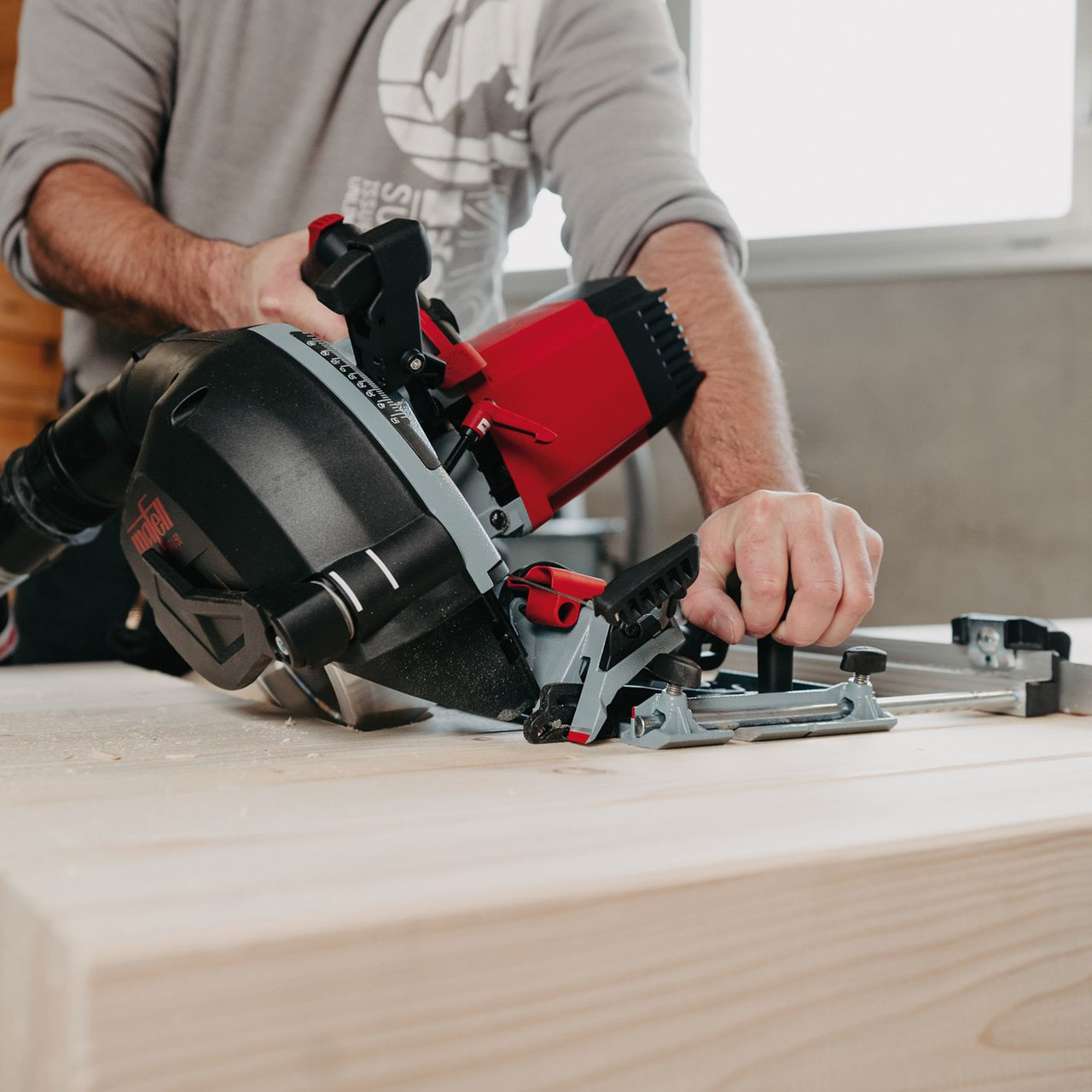

With the 2-in-1 function, the milling depth can be adjusted quickly and easily.

The hydraulic brake stops the tool within 3 seconds. The flashing LED light signals to the user that the milling tool is still rotating.

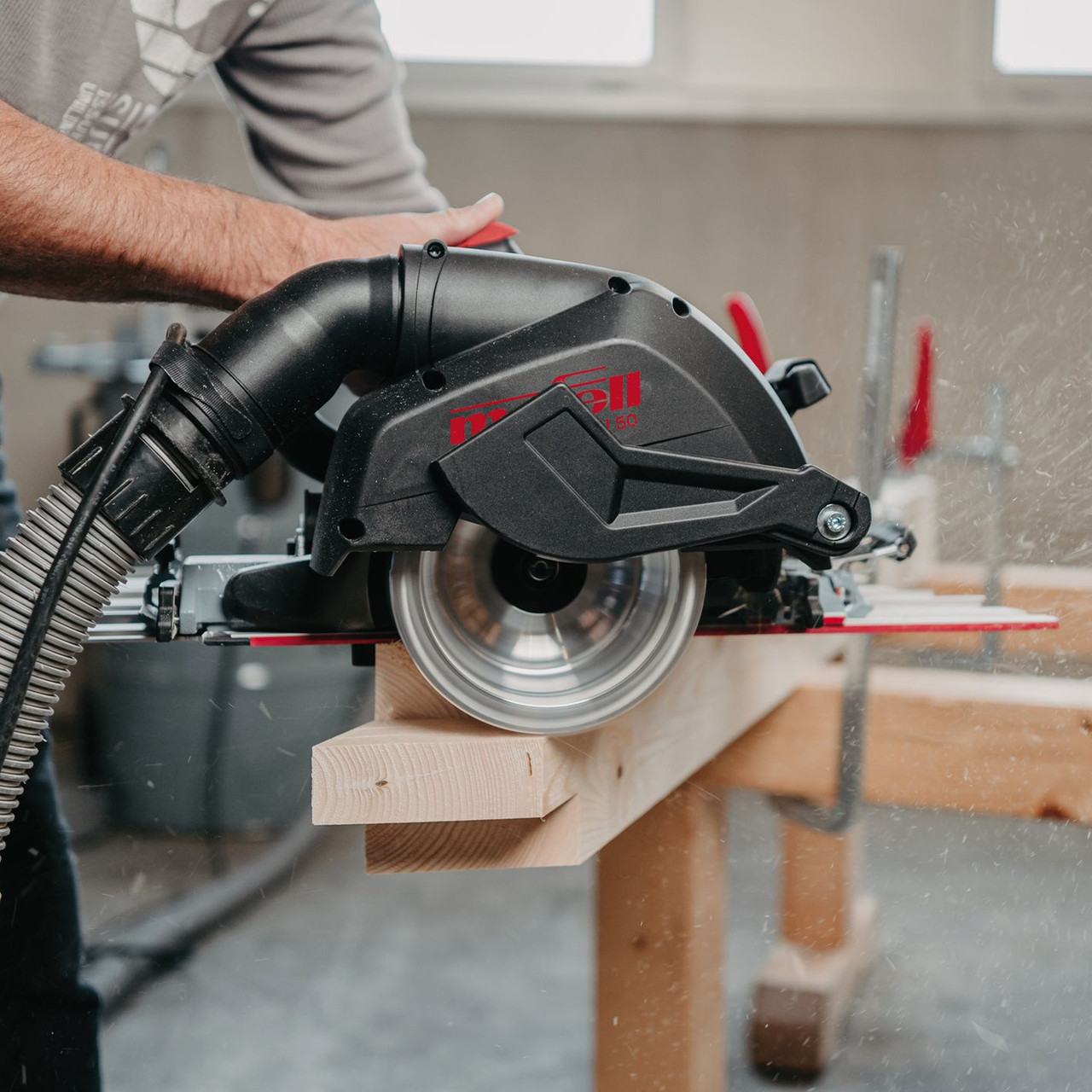

With a single push of a button, the NFU can be detached from the cross-cut rail and used freehand or on the guide rail.

TECHNICAL SPECIFICATION

Machine weight 9.4kg

Rated power 2300 W

Voltage 230 V

Milling depth without rail at 0° 0-50mm

Milling depth with rail at 0° 0-44mm

Rated idle speed 5900 rpm

Dimensions (L x W x H) with Cross Cut System 370x810x280mm

Cross Cut System L Milling Length 370mm

SCOPE OF DELIVERY

MAFELL NFU 50 Groove Cutter

Milling Head 091901
163 x 60 mm

Position Indicator NFU-PA 207467

Parallel Stop 207468

Cross Cut System L 208171

Screw Driver SW 6 207496

Screw Driver T-15 093274

Operation Manual
