SUITABILITY

Cross Laminated Timber CLT

Glue Laminated Timber GLT

Parallel Laminated Timber PLT

Boards (MDF, Chipboard, OSB)

Solid Timbers

BENEFITS

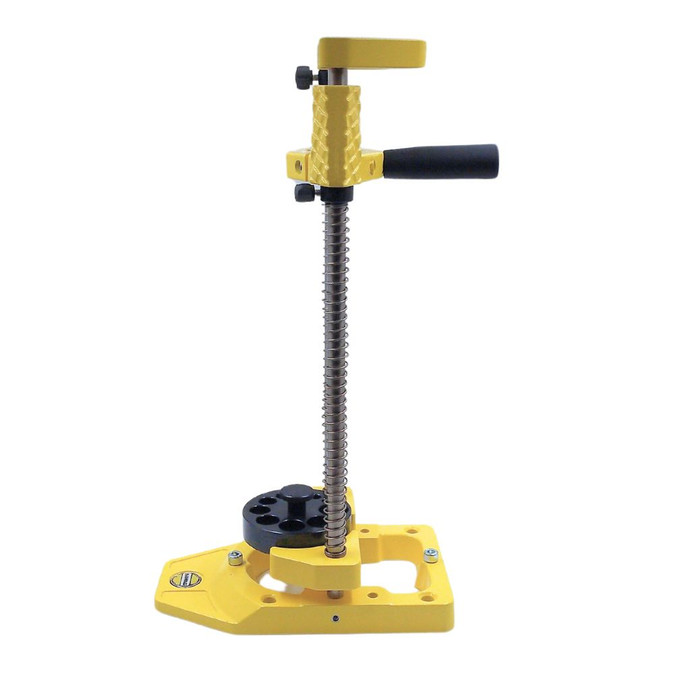

Precise drilling in exact 90° setting angle

Easy back stroke of the power drill by spiral springs

Precise fitting when used with FAMAG Drill Bits

Guide Bushing Plate Included for drill bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm

Fixtures which allow for clamping the Drill Guide to beams

SPARE PARTS LIST

1402.000 Clamping Fixtures

1402.901 Tails for Extending Clamping Capacity to 140mm

CAPABILITIES

Driling Guide Bush Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm

Drill Length 460mm

Drill Depth 310mm

PURPOSE

Precise drilling in exact 90° setting angle

TECHNICAL

Shank For power drills collar diameter 43 mm

Tool Material Cast Aluminium

Version Fixed 90°

Outside Dimensions Base Plate 250mm x 150mm

Inside Dimensions Base Plate 135mm x 90mm

Overall Height 630mm
