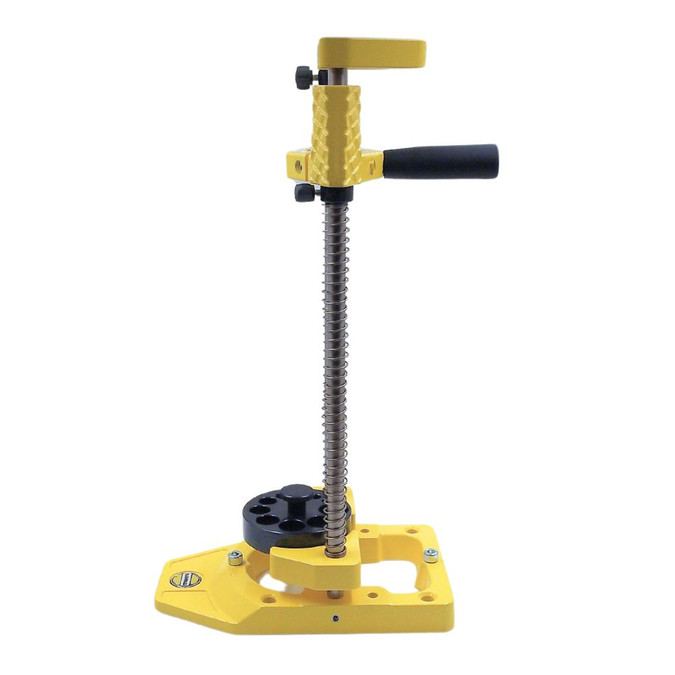

Get precise and easy drilling with FAMAG Drill Guides. With adjustable depth stops, spiral springs for back stroke, and a stabiliser for accurate drilling at 90° angle. Compatible with FAMAG drill rigs and various drill bit sizes.
SUITABILITY
Cross Laminated Timber CLT
Glue Laminated Timber GLT
Parallel Laminated Timber PLT
Boards (MDF, Chipboard, OSB)
Solid Timbers
BENEFITS
Precise drilling in exact 90° setting angle
Easy back stroke of the power drill by spiral springs
Precise fitting when used with FAMAG Drill Bits
Guide Bushing Plate Included for drill bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm
Fixtures which allow for clamping the Drill Guide to beams
SPARE PARTS LIST
1402.000 Clamping Fixtures
1402.901 Tails for Extending Clamping Capacity to 140mm
CAPABILITIES
Driling Guide Bush Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm
Drill Length 650mm
Drill Depth 460mm
PURPOSE
Precise drilling in exact 90° setting angle
TECHNICAL
Shank For power drills collar diameter 43 mm
Tool Material Cast Aluminium
Version Fixed 90°
Outside Dimensions Base Plate 250mm x 150mm
Inside Dimensions Base Plate 135mm x 90mm
Overall Height 810mm
