APPLICATIONS

Diagonal cuts -1 to +48°

Cross-sections and longitudinal sections

Plunge cuts

Material use e.g.: solid wood, cement fibreboard, Trespa, OSB, gypsum fibreboard, plastic, facade panels, panel materials

FEATURES

The MT 55 cc plunge saw with the Aerofix F-AF 1 suction-clamping system ensures perfect cuts and is extremely easy to use.

The closed saw blade housing and the protective slide on the saw cut ensure extremely low dust generation.

The MT 55 cc with the new CUprex compact engine for significantly higher speeds and yet plenty of power reserves.

The cutting depth can be adjusted to the millimeter. With or without a rail – simply turning the cutting depth indicator always shows the exact cutting depth.

For bevel cuts, the angle setting is fixed with half a turn using only one clamping screw in two places.

TECHNICAL SPECIFICATION

Machine weight 4.5kg

Rated power 1400 W

Voltage 230 V

Blade Diameter 162mm

Bore Size 20 mm

Rated idle speed 3600-6250 rpm

Cutting depth with rail at 0° 0-57mm

Cutting depth with rail at 45° 0-40.5mm

Cutting depth without rail at 0° -1 - +48°

SCOPE OF DELIVERY

MidiMax in the T-Max

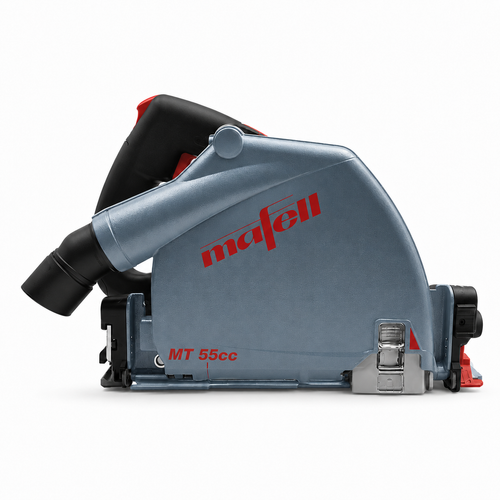

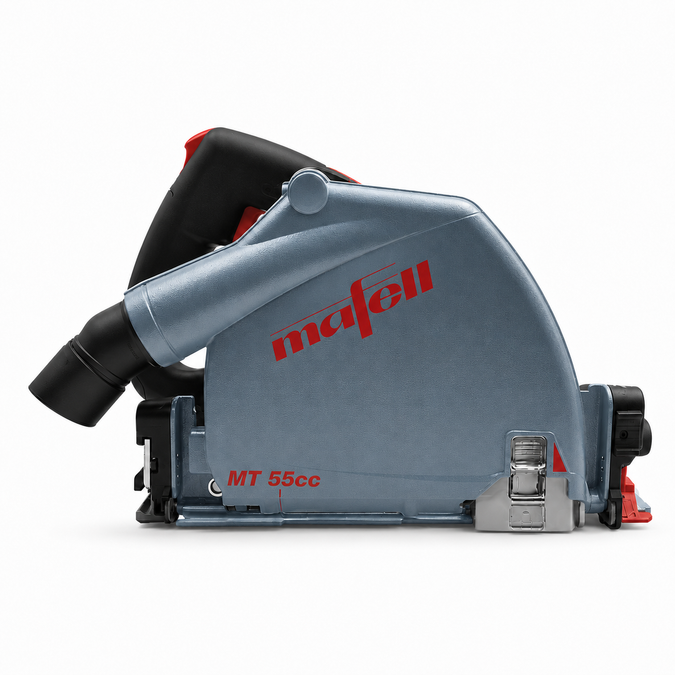

MAFELL MT55cc Plunge Track Saw

Allen Key 5mm 093034

Circular Saw Blade 092584
162 x 1.2/1.8 x 20 mm Z 48, WZ

Included T-MAX Storage Box

Operation Manual
