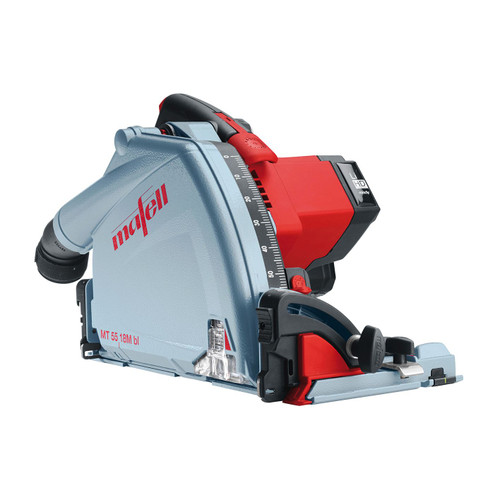

MAFELL Plunge Saw | MT 55-18 Cordless Plunge Cut Saw in Systainer
| Image | Product / size | SKU | EAN / UPC | Stock | Option / unit | Pack qty | Qty | Pieces | Weight | Unit price | Line total |
|---|
MAFELL Plunge Saw | MT 55-18 Cordless Plunge Cut Saw in Systainer
MAFELL Plunge Saw | MT 55-18 Cordless Plunge Cut Saw in Systainer
MAFELL MT 55-18 Cordless Plunge Cut Saw in Systainer
The MAFELL Cordless plunge saw MT 55 18 M bl in T-MAX offers mains independence with 18V Li-Ion tech, low dust generation, precise cutting depth adjustment, bevel position fixing, fast blade change, scoring function, and compatibility with guide rail systems. It has a cutting depth of 0-57mm, pivoting range of -1-48, and weighs 4.5kg. The scope of delivery includes a saw blade, position indicators, parallel fence, chip bag, and hexagonal spanner.
APPLICATIONS
Diagonal cuts -1 to +48°
Cross-sections and longitudinal sections
Plunge cuts
Material use e.g.: solid wood, cement fibreboard, Trespa, OSB, gypsum fibreboard, plastic, facade panels, panel materials
FEATURES
The MT 55 18M bl plunge saw with the Aerofix F-AF 1 suction-clamping system ensures perfect cuts and is extremely easy to use.
The scoring function is activated with a single movement. This means that the MT 55 18M bl saws visible edges as cleanly as a stationary machine, even when the chip guard is worn.
The idea of developing a new plunge saw is not new. What was new, however, was designing all the components of a machine in such a way that a unique precision product was created.
The cutting depth can be adjusted to the millimeter. With or without a rail – simply turning the cutting depth indicator always shows the exact cutting depth.
Cutting depths (without rail) of up to 57 mm are now possible. Thanks to the innovative swivel system, there are hardly any limits, even for angled cuts.
For bevel cuts, the angle setting is fixed with half a turn using only one clamping screw in two places.
TECHNICAL SPECIFICATION
Machine weight 4.5kg
Voltage 18 V
Blade Diameter 162mm
Bore Size 20 mm
Rated idle speed 4850 rpm
Cutting depth with rail at 0° 0-57mm
Cutting depth with rail at 45° 0-40.5mm
Cutting depth without rail at 0° -1 - +48°
SCOPE OF DELIVERY
- 1 Allen key 5 mm; Ref. No. 093034
- 1 Dust bag; Ref. No. 206921
- 1 TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials; Ref. no. 092584
- 1 Position indicator MT-PA; Ref. No. 205398
- 1 Parallel guide fence; Ref. No. 203214
- Transport and storage box T-MAX
